Omron FQ2-S/CH Series

Specifications and Dimensions
FQ2-S/CH User’s Manual
569
Appendices
9
Dimensions

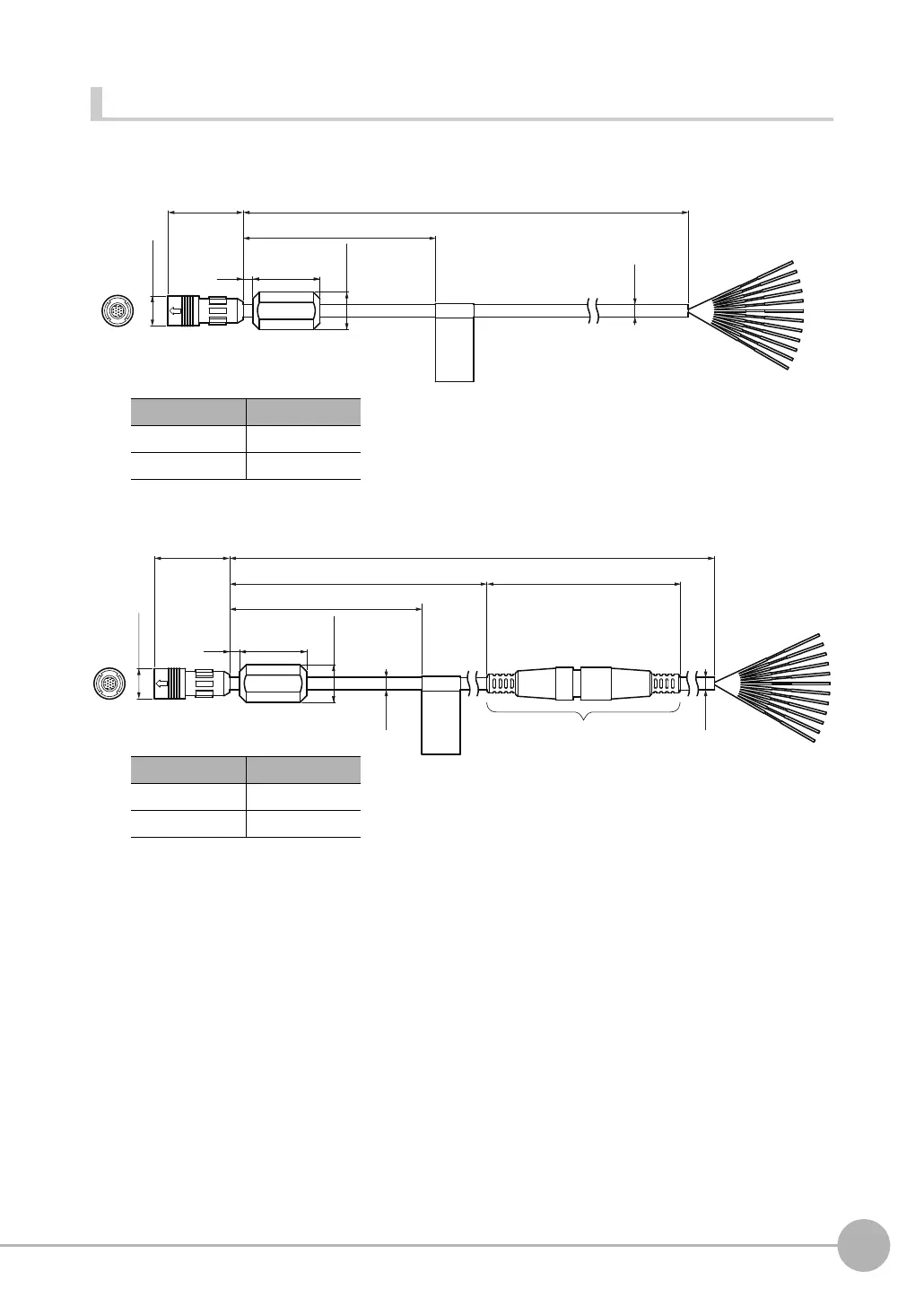

•I/O Cables
FQ-WD002/WD005
FQ-WD010/WD020
(39.8)
(100)
(5)
35
L
*1
(15.5 dia.)
6.4 dia.
19.5 dia.
*1: The cable length is given in the following table.
Model Cable length
FQ-WD002 2 m
FQ-WD005 5 m
(Unit: mm)
(39.8)
5000
+50
0
(100)
(100)
(5)
35
L
*1
*2
6.4 dia.
6.7 dia.
(15.6 dia.)
19.5 dia.
*1: The cable length is given in the following table.
*2: The relay connector does not have water-proofing.
Model Cable length
FQ-WD010 10 m
FQ-WD020 20 m
(Unit: mm)
