Omron FQ2-S/CH Series User Manual

Wiring
56
FQ2-S/CH User’s Manual
Wiring Sensor Data Units

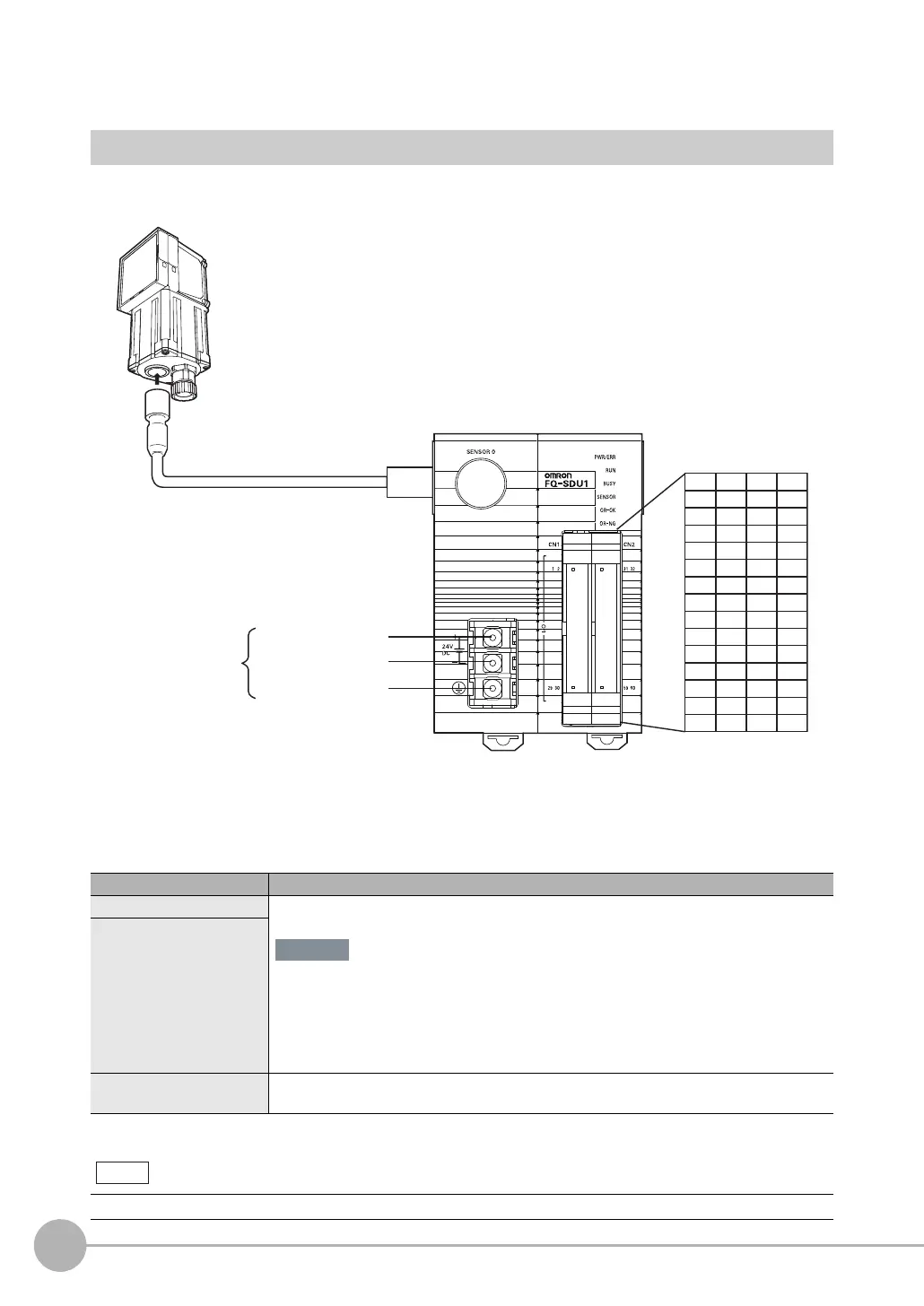

Parallel Interface Sensor Data Unit (FQ-SDU1)
For the I/O connector harness, use an FQ-VP1 Parallel Cable for the FQ-SDU1 or a MIL-standard
harness, such as the OMRON XZ2F. (The Cables are sold separately.)
Pins 1 to 30 and pins 31 to 60 are for separate connectors. One FQ-VP1 is required for each connector.
Signal Application
Power supply (24 V)
These terminals are for the external power supply (24 V).
• Wire the power supply separately from other devices. If the wiring for other devices is
placed together or in the same duct as the wiring for the Sensor, the influence of elec-
tromagnetic induction may cause the Sensor to malfunction or may damage it.
• Do not allow the load current to exceed 50 mA. The output circuit may be damaged if
the load current exceeds 50 mA.
Power supply (0 V)
Frame ground
This is the frame ground terminal.
Connect the ground wire by a D-type ground (ground resistance of 100Ω or less).
For the IN/OUT type of the Sensor and Sensor Data Unit, use the same IN/OUT type (NPN/PNP).
FQ2-S3
@@@@@
/
FQ2-S4
@@@@@
/
FQ2-CH1
@@@@@
-M
(Sensors with Built-in Lighting or Sensors with C-mounts)
Power supply (24 V)
Power supply (0 V)
Frame ground
1 2 31 32
3 4 33 34
5 6 35 36
7 8 37 38
9 103940
11 12 41 42
13 14 43 44
15 16 45 46
17 18 47 48
19 20 49 50
21 22 51 52
23 24 53 54
25 26 55 56
27 28 57 58
29 30 59 60
(Screw size: M3,
Tightening torque:
0.54 N·m)
FQ-WU0
Sensor Data Unit Cable
Important
Note
