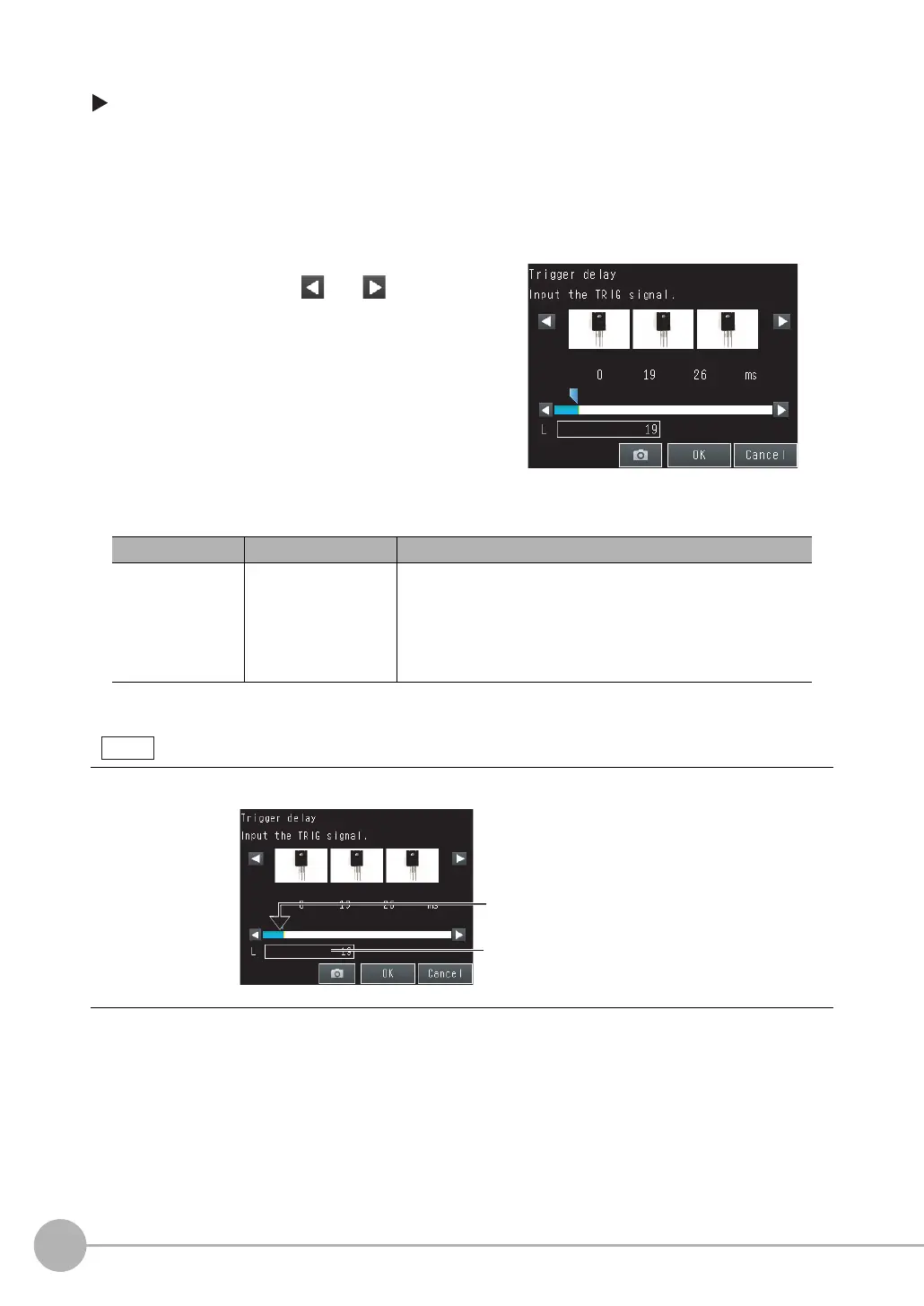

Adjusting the Timing of Taking Images
88
FQ2-S/CH User’s Manual
[Image] − [Trigger setup] − [Trigger delay]
r
1 A TRIG signal is input.
Images are input continuously.
2 Select the image with the measurement object
in the center using and .
3 Press the image.
4 Press [OK].
Setting item Setting value Description
Trigger delay
Range: 0 to 163ms
Default: 0
Adjusts the time for opening the camera shutter after Trigger
conditions are established.
Only valid for external triggers.
Delay time = (Setting value) + 150μs
The delay time can be set using the adjustment bar or by directly entering a value.
Note
Directly input the delay time.
Or
Move the bar to the left or right.
