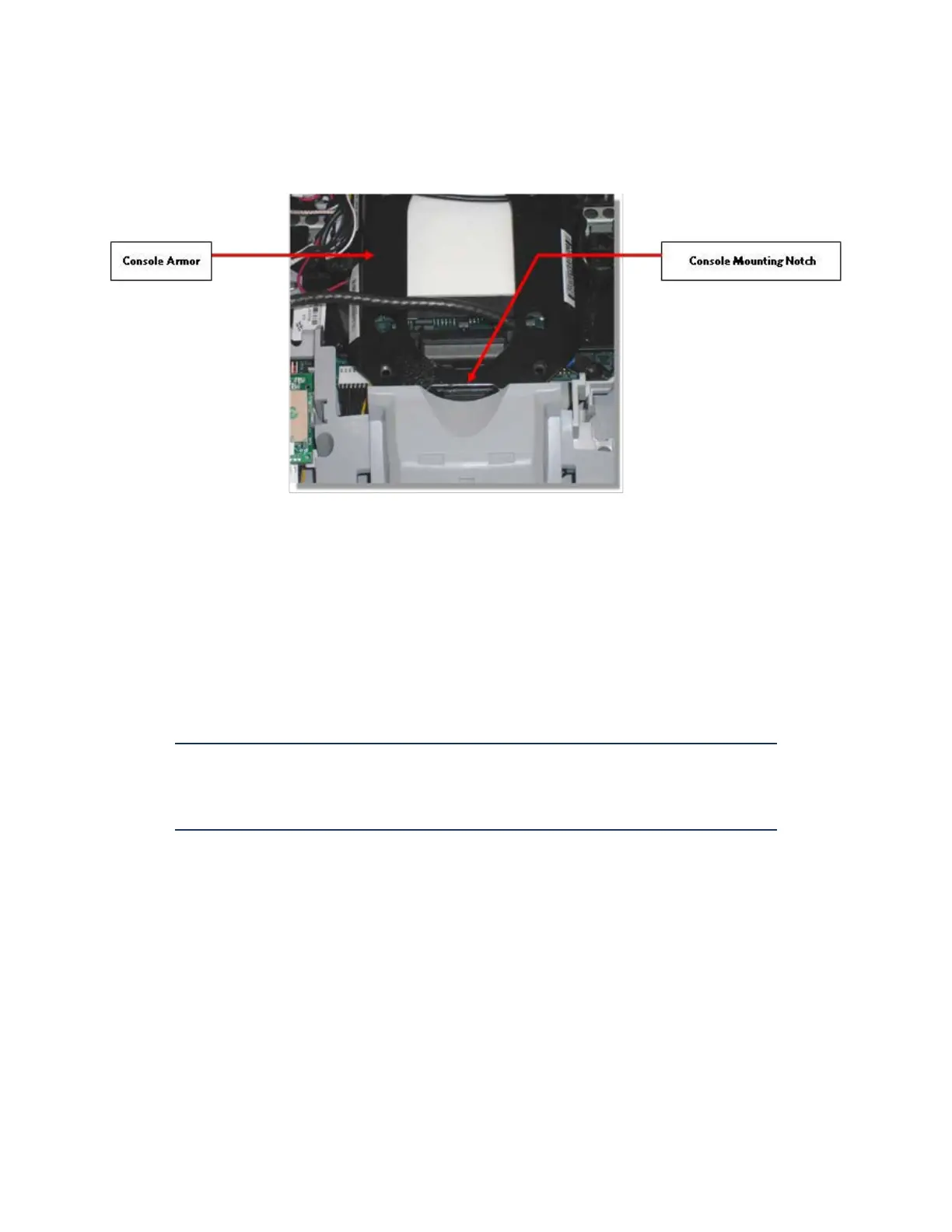

Figure 40: Console Mounting Notch
Cable Connections
1 Route the RF coax cable down below the tuner and out the right
bottom side of the armor. This is easier if you straighten the
cable and gently push it in the direction as shown in diagram below.
Feed about 10 inches of cable out though the plastic using your
finger as a guide.
2 Bring the coax cable up over the top of the armor and connect it to
the flexible cable attached to the tuner.
3 Secure the RF coax connectors in place with a zip tie.
Note: It is important that the connection be tied to the frame in this
location to prevent the cable from being pinched, and the possibility of
rattling noises during use. Be sure to secure the zip tie on the connector
and not on the cable.
