© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law

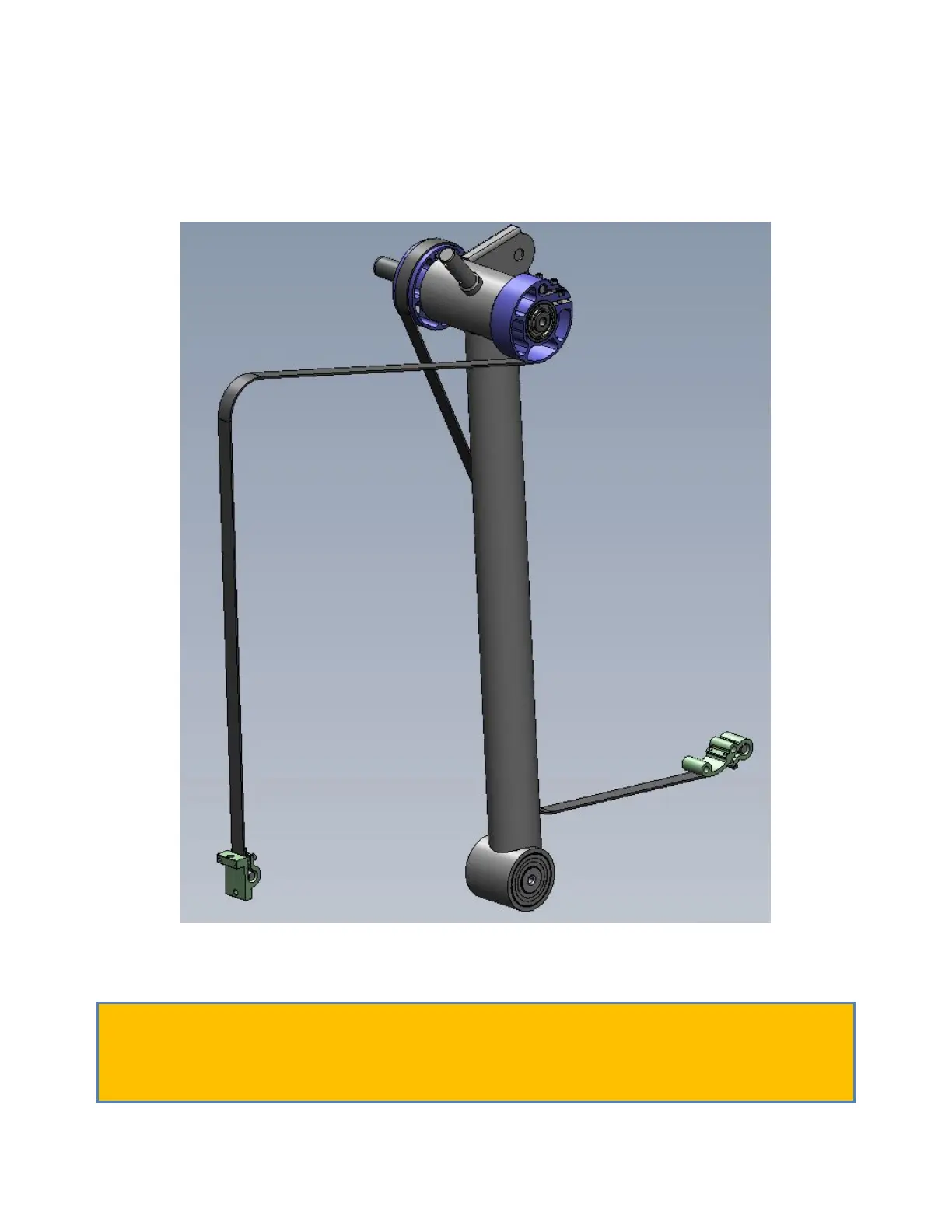

Figure 175: Front Arm and Belts
19 Set and support the right front arm assembly next to one of the
front arms while feeding the outside flat belt through the upper
arm.
Note: the flat belt must be routed over the strut in the front arm
assembly. Failure to route the flat belt over the strut will cause
severe damage to the flat belt. The Figure below illustrates the
correct flat belt routing.
