Front Cover Assembly
1 Guide the arm openings in the front cover around the arms of the
AMT, taking care that the tabs at the bottom corners of both
openings are inside the two side covers. Then guide the front cover
into place until the latches on the side covers click into place.
2 Fasten the two #10 x ¾ inch screws at the bottom corners of the
front cover. Tighten the screws completely.
Upper Arm Cover Replacement

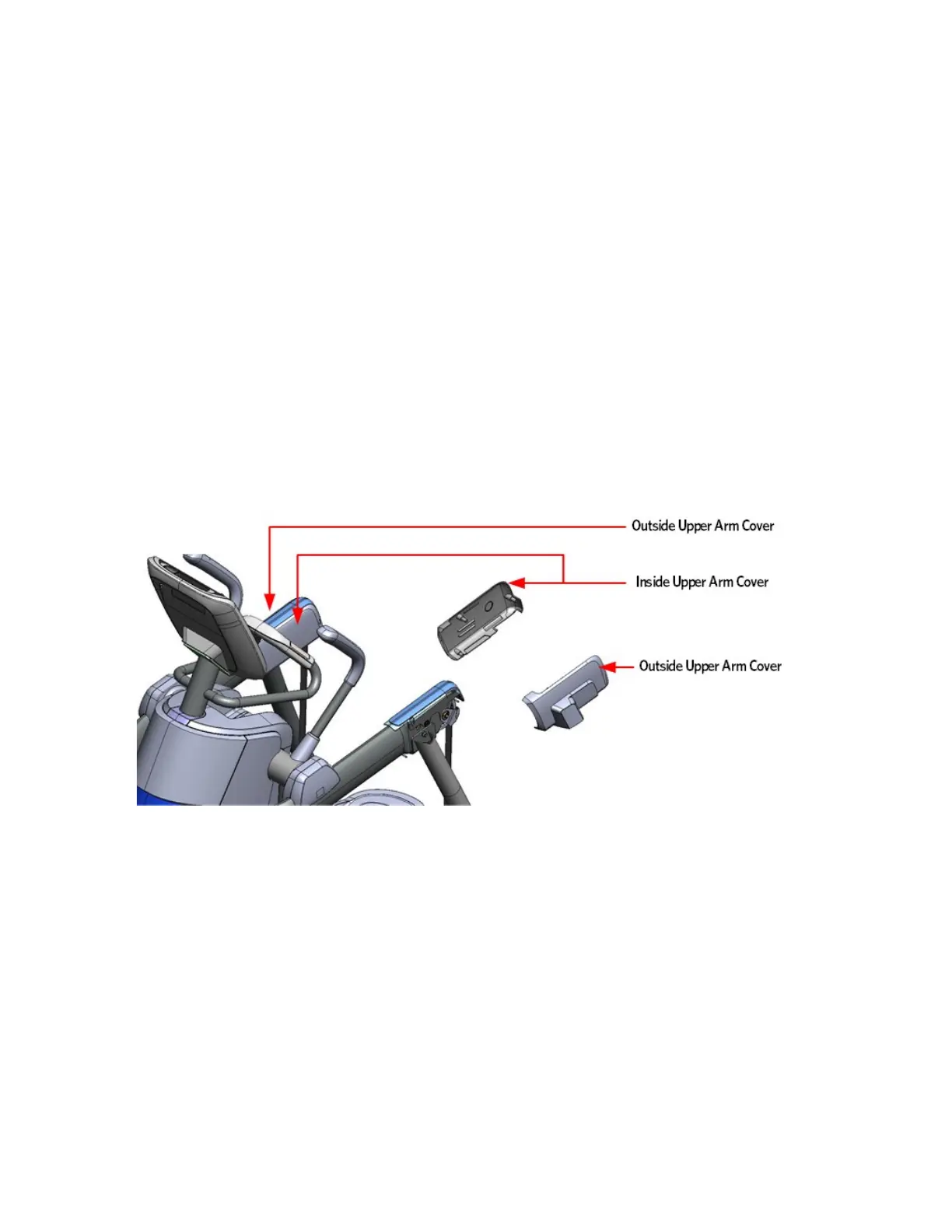

Figure 78: Upper Arm Covers
Procedure:
1 Remove the four screws that fasten the inside upper arm covers to
the upper arm.
2 Remove the screws that fasten the outside upper arm covers to the
upper arm.
3 Remove the inside and outside covers from the upper arm.
4 Secure the replacement cover to the arm using the five screws
removed in step 1. Finger Tighten screws in all locations before
fully tightening screws.
