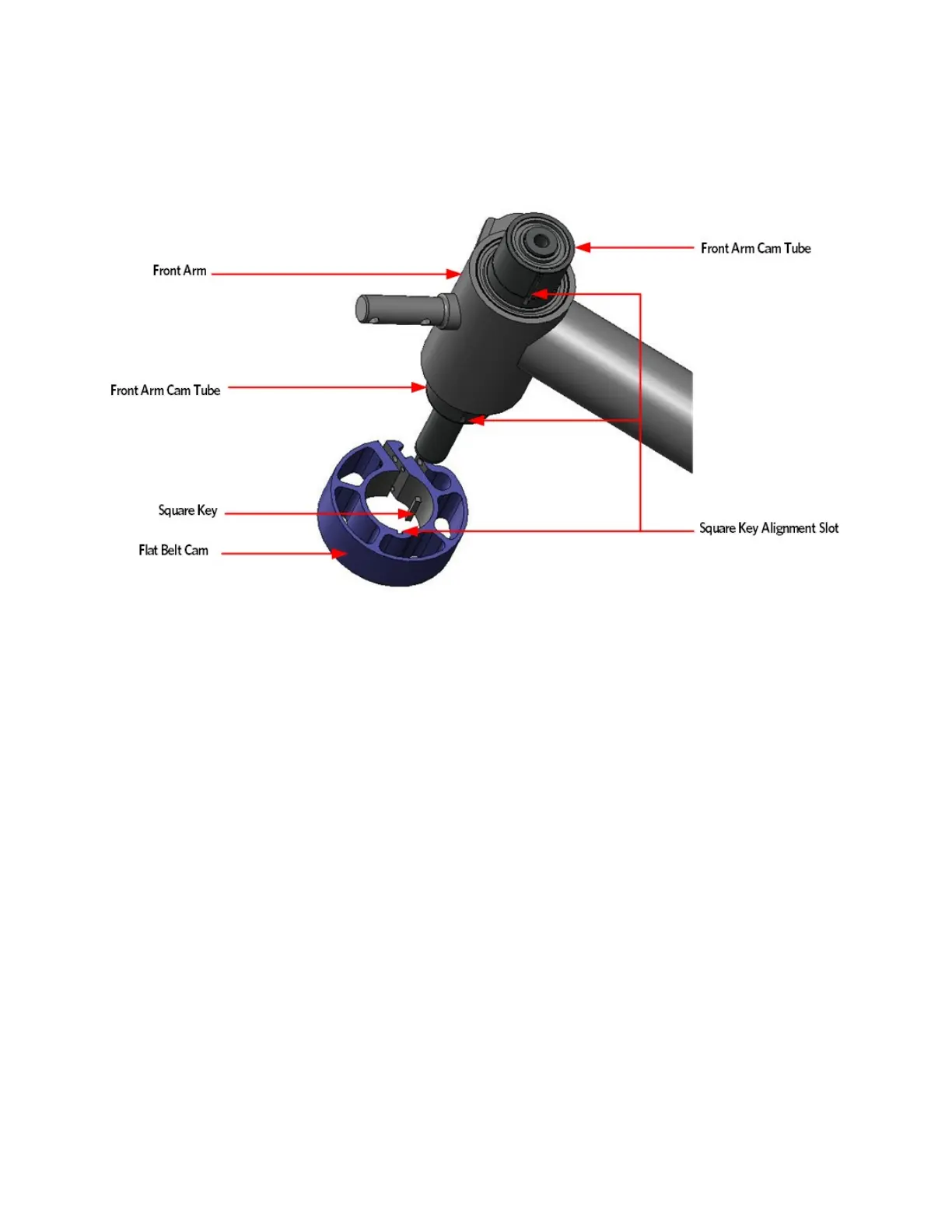

Figure 195: Front Arm and Cam Square Keys
4 Note: ensure the flat belts are positioned correctly before
installing the front arm. With assistance, lift the front arm and
then set the front arm into the lower main shaft clamp and upper
arm.
