© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law

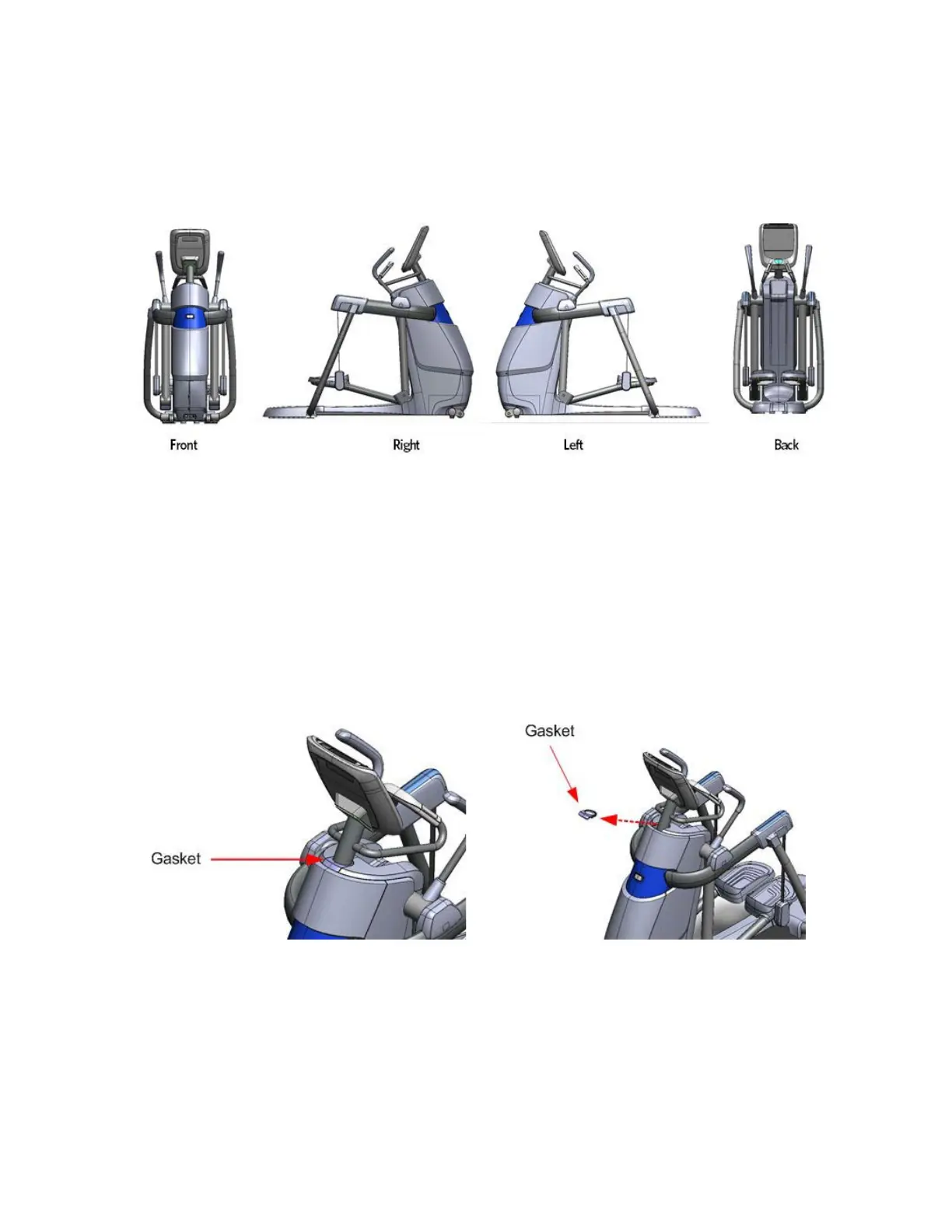

Figure 64: Front, Back, Left, Right Conventions
Top Cover Removal
1 Standing at the front of the AMT, push in and then downward on the
cover gasket with your thumbs until the gasket locking tabs are free
of the top cover, grasp the gasket and remove. The gasket is split
at the back to facilitate removal.
Figure 65: Cover Gasket
2 Grasp the top cover at the gasket opening and pull upward to apply
pressure to the locking tabs. While pressure is applied to the top
cover gently tap the front cover just below the top cover with the
heel of your hand. See figure below.
To Next Page
