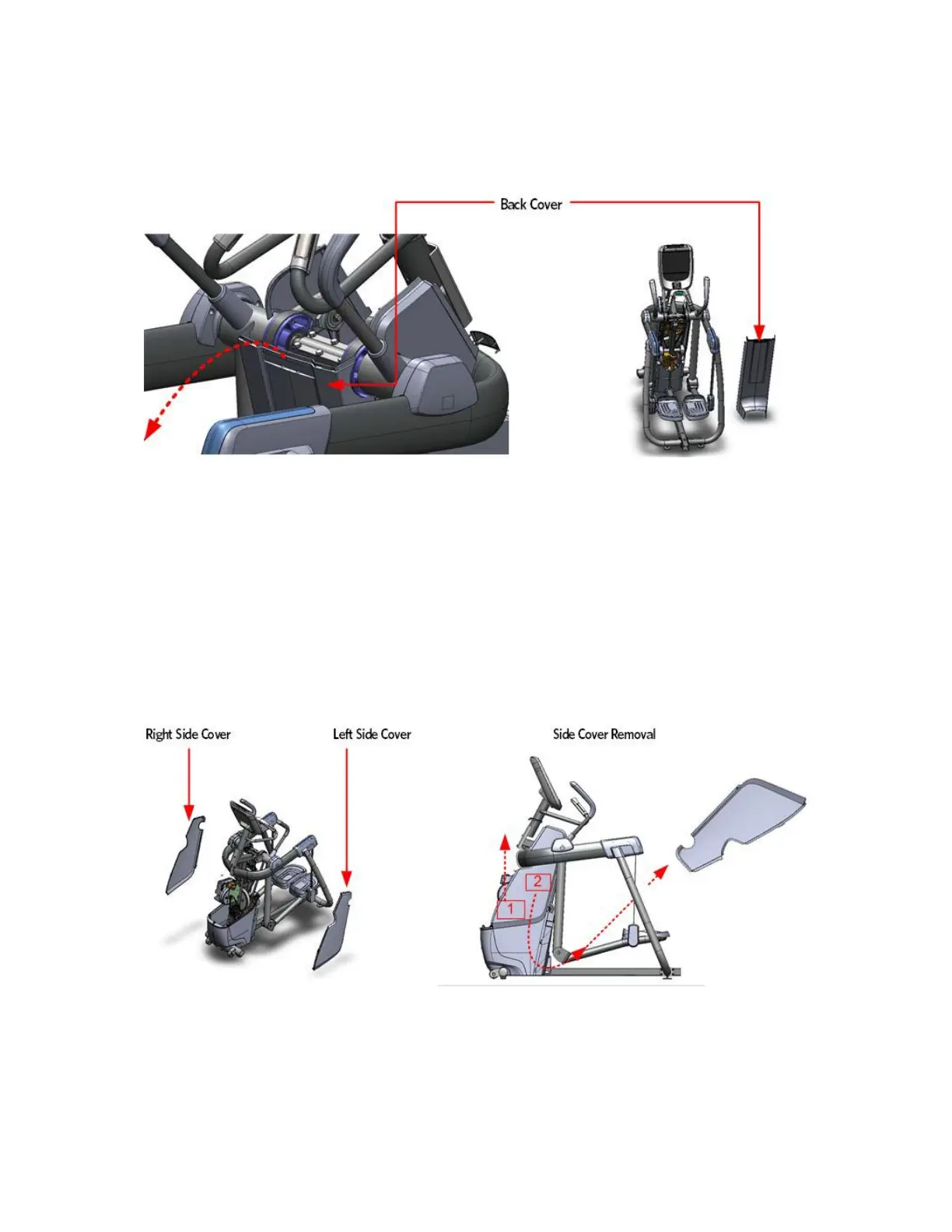

Figure 71: Back Cover Removal
Left and Right Side Cover Removal
1 Grasp each side of the left side cover, near the bottom, lift up and
then pull the bottom of the cover out and away from the frame. The
cover will release from the locking tabs.
2 Rotate the bottom of the side cover towards the back of the AMT to
remove.
3 Repeat steps 1 and 2 to remove the right side cover.
Figure 72: Side Cover Removal
Left and Right Side Bottom Cover Removal
1 Remove the eight #10 x ¾ inch screws that fasten the bottom covers to
the frame.
