Front Flat Belt Terminal Removal
9 Remove the bolts and washers that secure the front flat belt clamps
to the lift platform

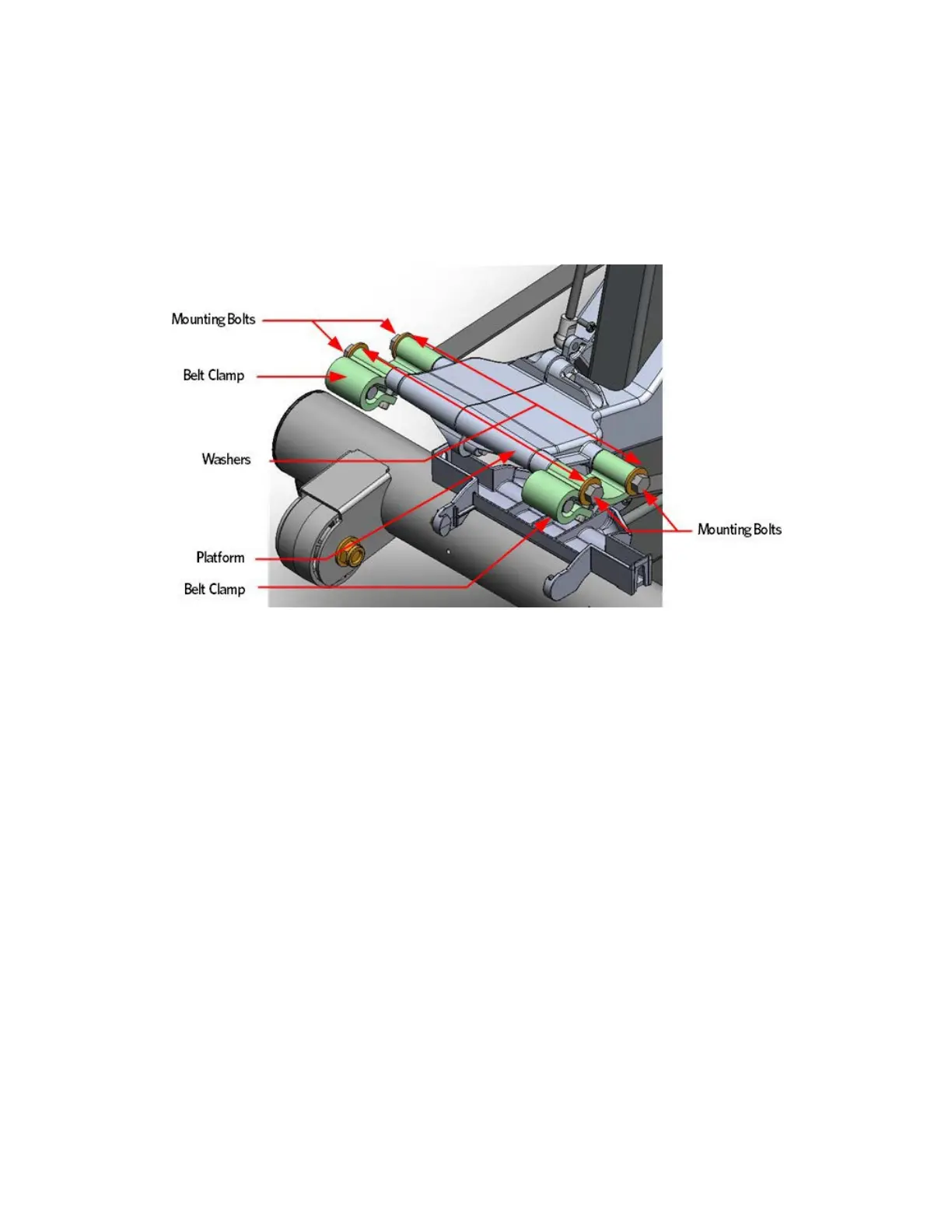

Figure 170: Front Belt Clamps
Stairarm Removal
10 Place the shaft of a Philips screw driver into the drain hole on the
bottom of the front arm. Rotate the front arm bearing by turning the
outside mounting bolt that secures the front arm to the stairarm
until the screw driver engages into the bearing and locks it. You
may have to rotate the bearing one full turn to align the bearing
lock hole with drain hole.
11 Once the screwdriver has locked the bearing preventing further
rotation, fully remove the inside and outside mounting bolts. Remove
the stairarm.
12 Repeat the steps for the remaining stairarm.
To Next Page
