Page 183
9 Repeat the process for the remaining belt guard.

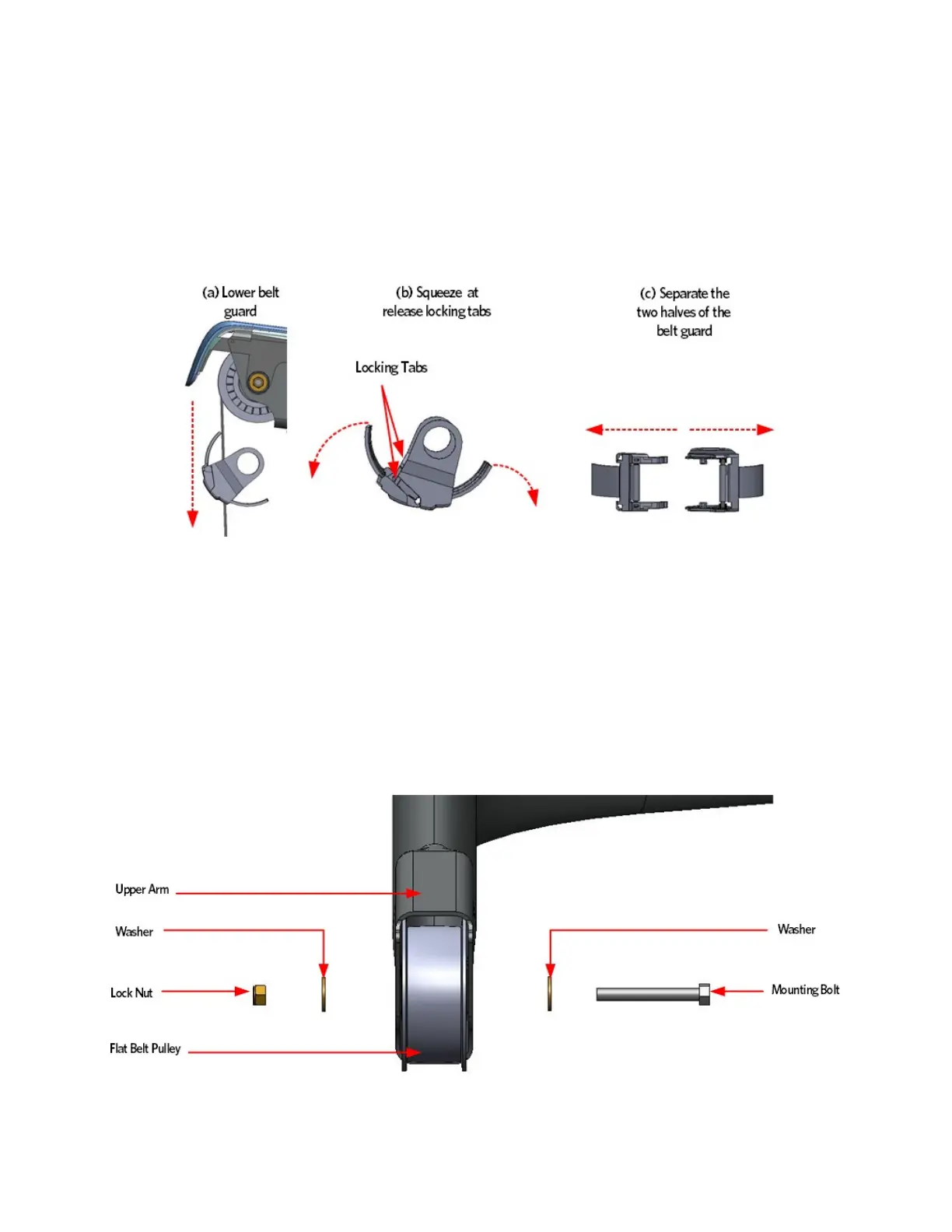

Figure 104: Belt Guard Removal
10 Remove the 3/8-16 X 3 mounting bolt, the two washers and the 3/8-16
lock nut that secure the upper arm pulley to the upper arm.
Figure 105: Upper Arm Flat Belt Pulley Mounting
