If the belt has already been removed, you can use a fish tape or coat
hanger to pull the belt through the upper arm. Ensure the flat belt is
routed over the top of any hardware that may be crossing the inside of
the upper arm.
12 If the flat belt cannot be pulled through the upper arm by taping a
new belt to the old belt or with a fish tape, continue with the next
steps, otherwise skip to the Flat Belt Removal - Upper Arm Cam
procedure.
13 Remove the mounting bolt, the two washers and the nut that secure
the upper arm pulley to the upper arm.

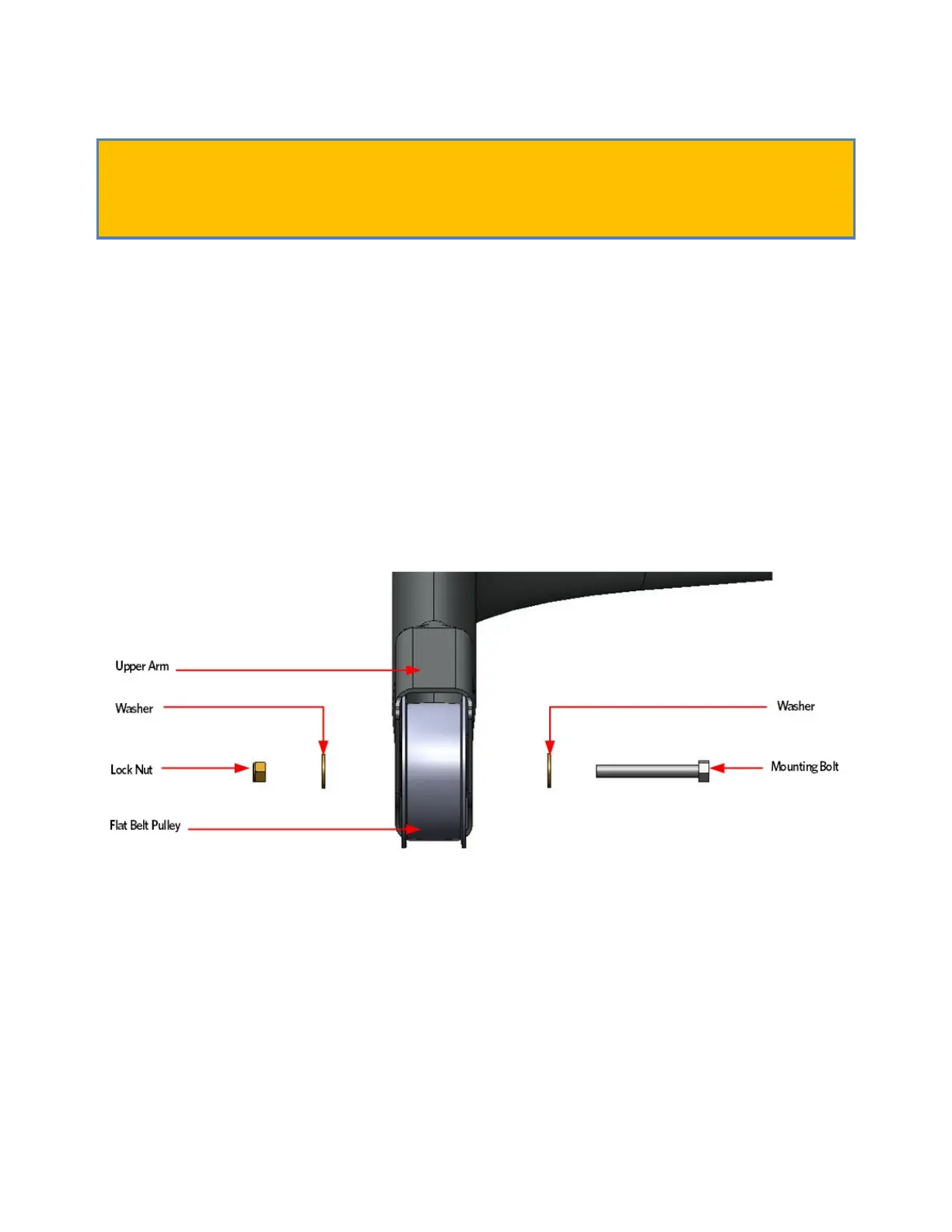

Figure 141: Upper Arm Flat Belt Pulley Mounting
14 Slide out the upper arm pulley, the two spacers, and the pulley
shaft from the upper arm.
15 Repeat the process for the remaining flat belt pulley.
