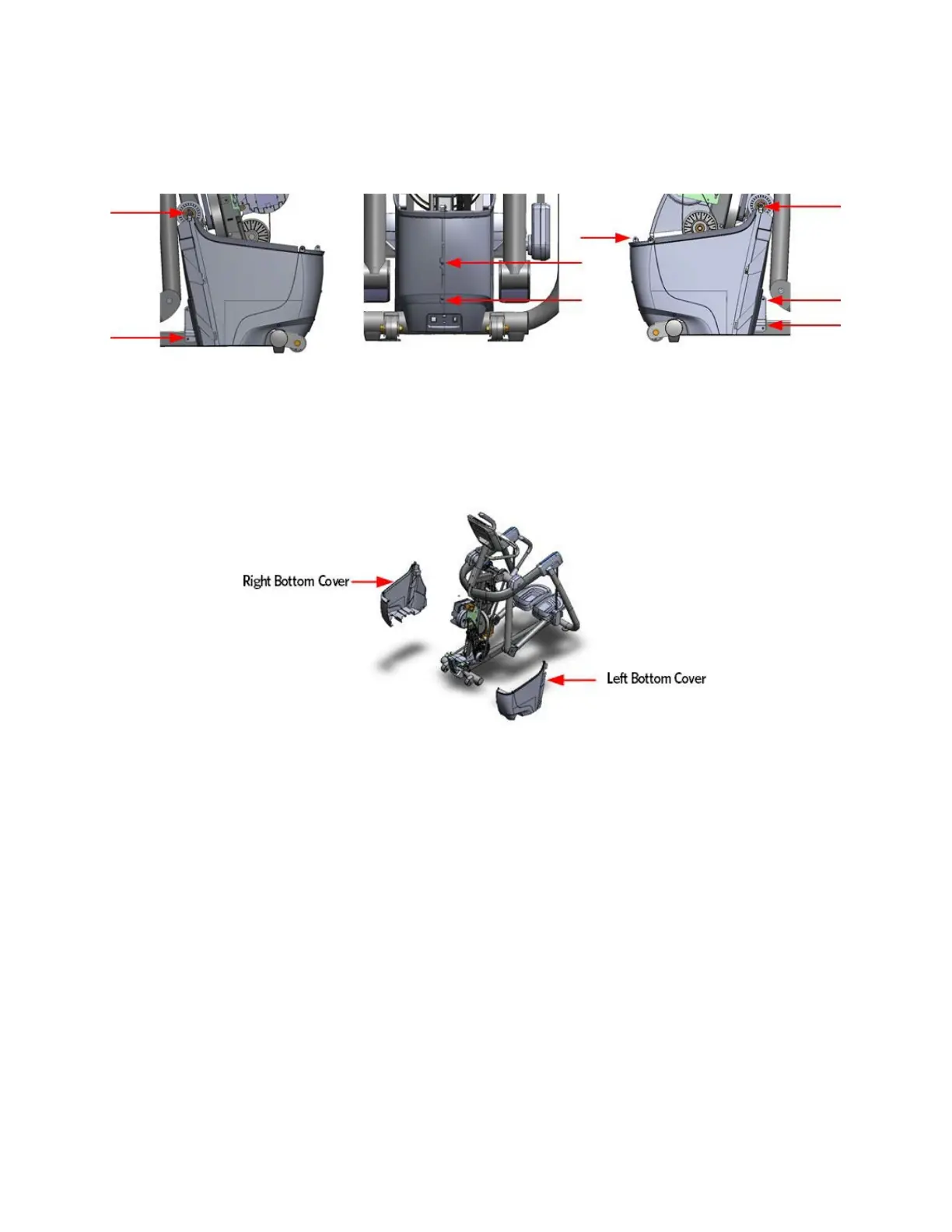

Figure 73: Left and Right Side Cover Screw Locations
2 The left and right side bottom covers can now be removed by lifting
them up and out.
Figure 74: Bottom Covers Removed
Left and Right Bottom Cover Assembly
1 Set the left and right bottom covers in place, align the cover
mounting holes.
2 Fasten the two covers together with the 8 #10 x ¾ inch screws.
Left and Right Side Cover Assembly
1 Grasp the side cover near the bottom, rotate the side cover so that
the top of the side cover points toward the front of the AMT and the
round cover notch points up.
2 Thread the top of the side cover under the upper arm weldment and
toward the front of the AMT.
3 Rotate the top of the side cover up until the round notch of the
side cover meets the upper arm.
