6 The belt guard assembly is two interlocking halves and needs to be
separated before it can be removed from flat belt:
a) Lower the belt guard down just below the upper arm.
b) Squeeze the belt guard near the base to release locking tabs and
rotate the two halves down.
c) Taking care to not lose the rollers inside the belt guard, pull
the two belt guard halves away from each other to separate.

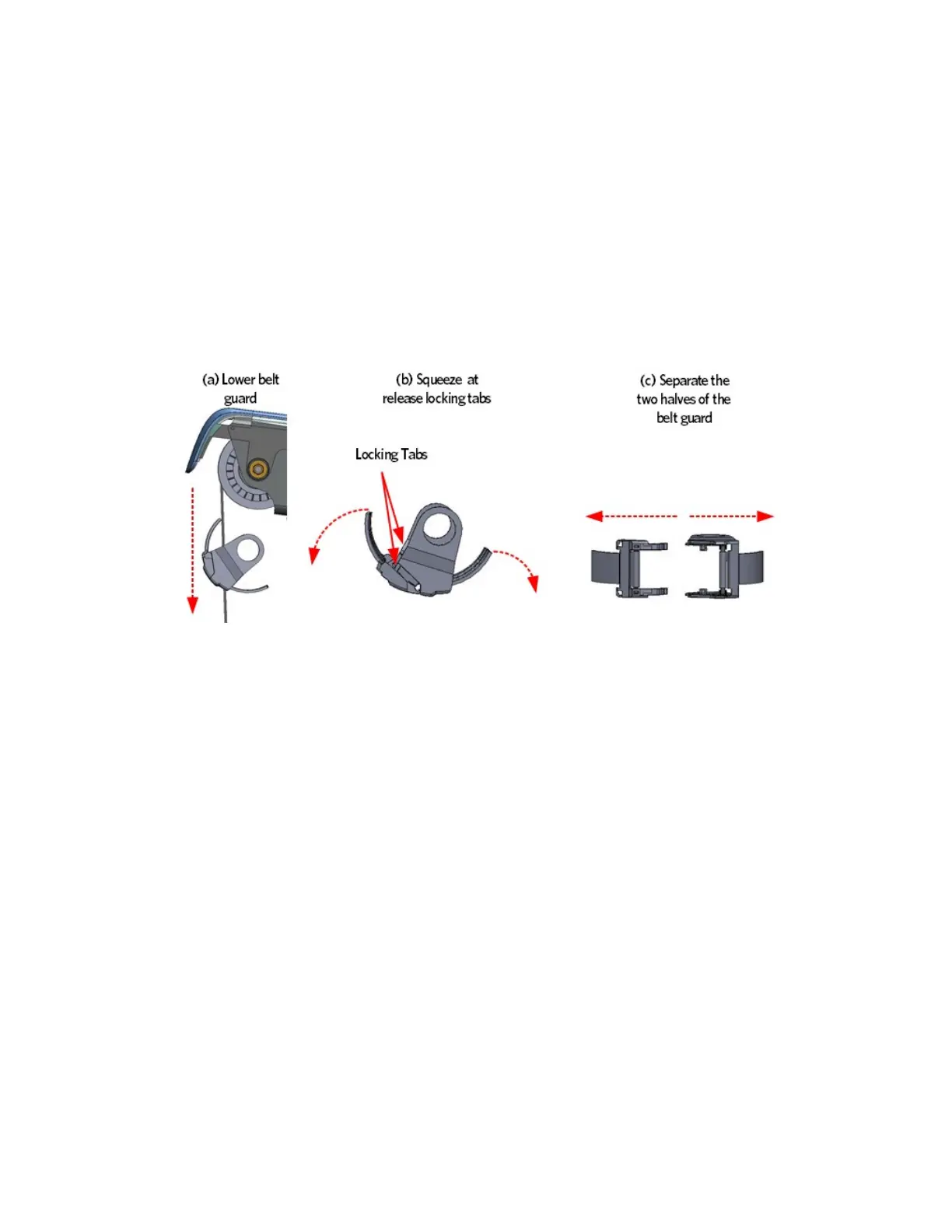

Figure 167: Belt Guard Removal
Upper Arm Flat Belt Pulley Removal
7 Remove the mounting bolts, the two washers and the nut that secure
the upper arm pulleys to the upper arms.
To Next Page
