© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law

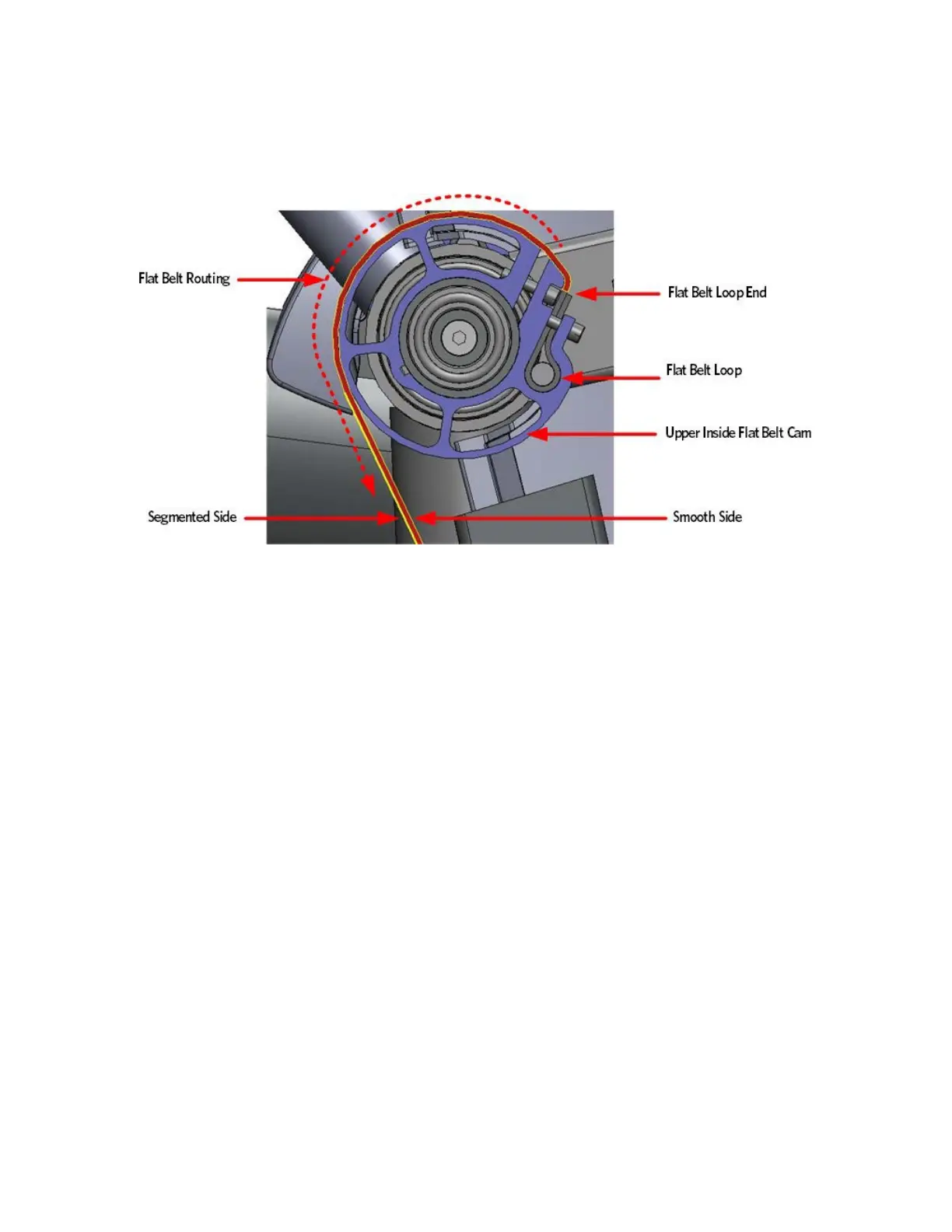

Figure 201: Upper Inside Cam Flat Belt Routing
5 Loop the end of the flat belt back to the 4 1/2 inch mark. While
holding the flat belt end on the 4 1/2 mark, work the loop into the
cam clamp. A 1/2 inch deep set socket can be used to assist in
pushing the belt into place. When the flat belt loop is about half
way into the cam clamp, push the pin into the flat belt loop.
6 Continue to work the flat belt loop and pin into the cam clamp until
the side of the flat belt is resting next to the clamp screw. Ensure
the pin is centered within the cam clamp.
