Rear Flat Belt Terminal Cover Installation
1 Align the top of the replacement inside cover so that it is pointing
toward the floor. Place the bottom of the cover in between the flat
belt terminal and the stairarm pedal. Rotate the top of the cover up
and in to place.
2 Fasten the outside and inside terminal cover to the flat belt
terminal using the two #10-24 X 1.25 screws.

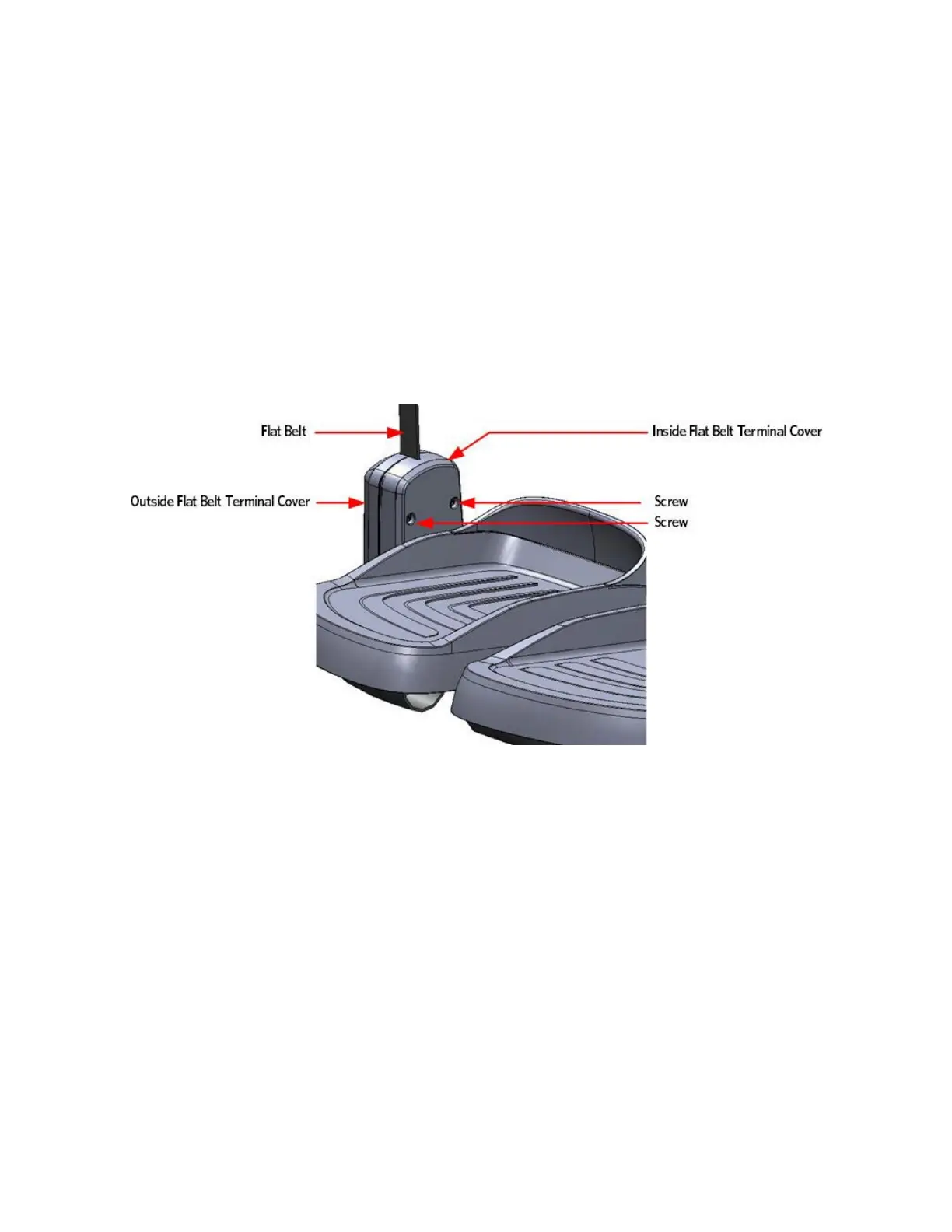

Figure 100: Flat Belt Terminal Covers
Replacing a Upper Arm Flat Belt Pulley
Upper Arm Flat Belt Pulley Replacement Procedure
1 Remove the main body covers as per procedure, Cover Replacement (on
page 152).
2 Remove the tension from the inner flat belt pulleys by lifting up on
the stairarms, pulling the flat belts off the flat belt pulleys, and
then gently setting the stairarm down.
Upper Arm Cover Removal
To Next Page
