Page 340

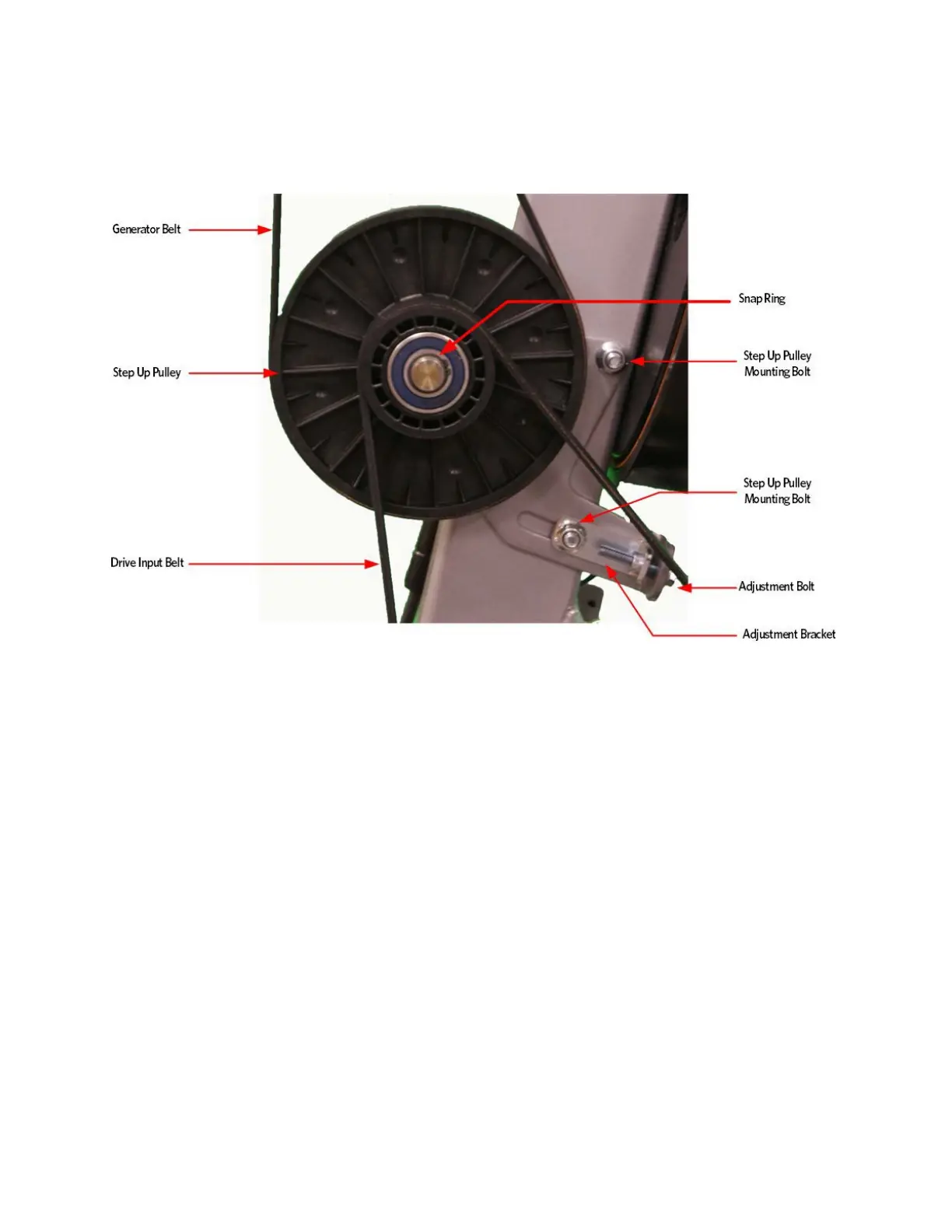

Figure 294: Step Up Pulley
36 Tighten the two step up input pulley mounting bolts. Torque to 160
inch pounds
37 Install the generator belt over the step up pulley and generator
pulley.
38 Place a belt gauge on the generator belt as shown in below.
