Center Beam Cover Removal
1 Remove the platform.
2 Apply forward pressure at the base of center beam cover, lift the
cover up slightly until the locking tab is clear of the frame.
3 Pull the center beam cover back toward you until the cover is free
from the frame.
Note: Do not lift the cover up right after the front cover tab releases, lifting up
the cover too quickly may not allow the middle center beam tabs to clear the
frame slots, damaging the tabs.

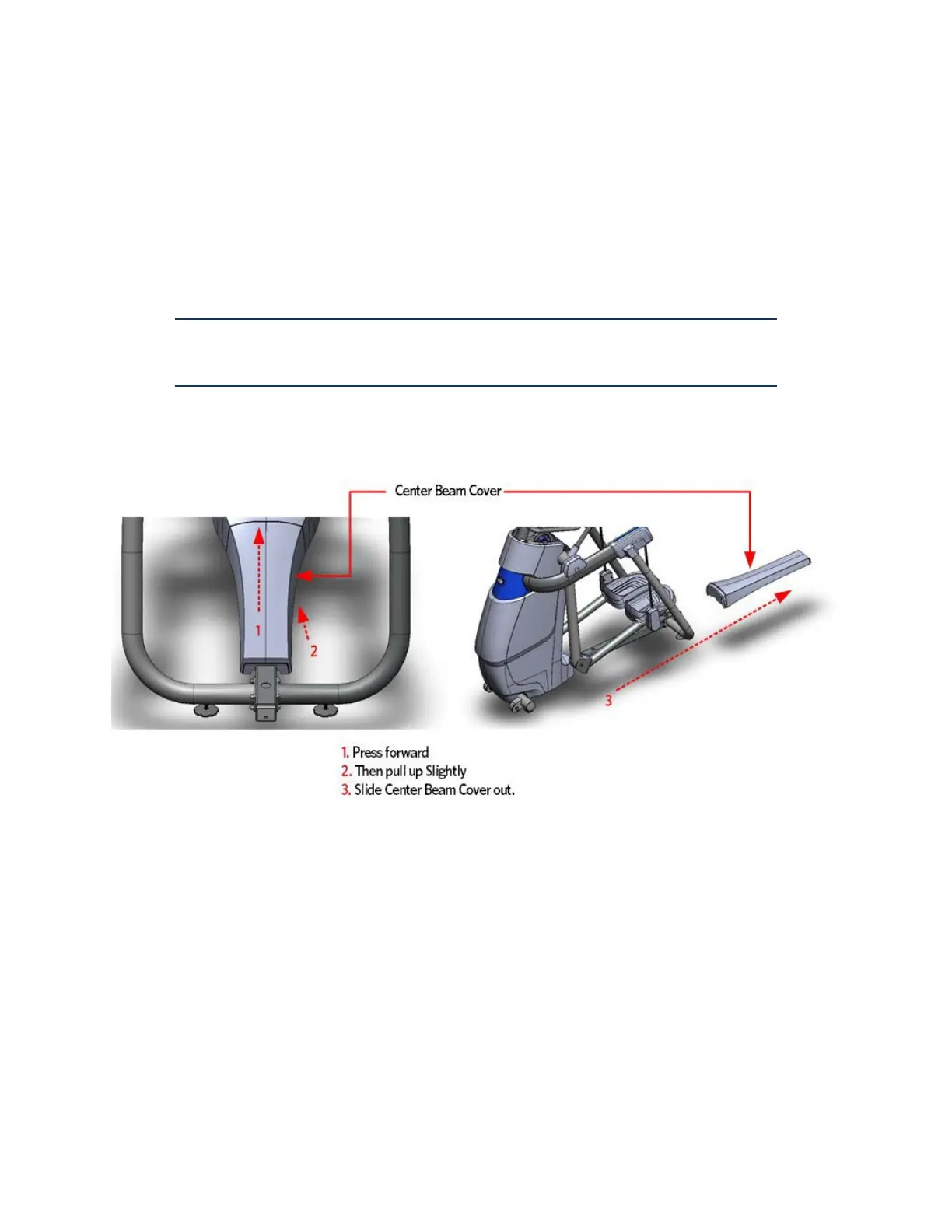

Figure 70: Center Beam Cover Removal
Back Cover Removal
1 Grasp the top of the rear cover and pull back, the back cover will
release from the locking tab and then the cover can be lifted out of
the slots in the bottom covers.
