11 Slide out the upper arm pulley, the two spacers, and the pulley
shaft from the upper arm.

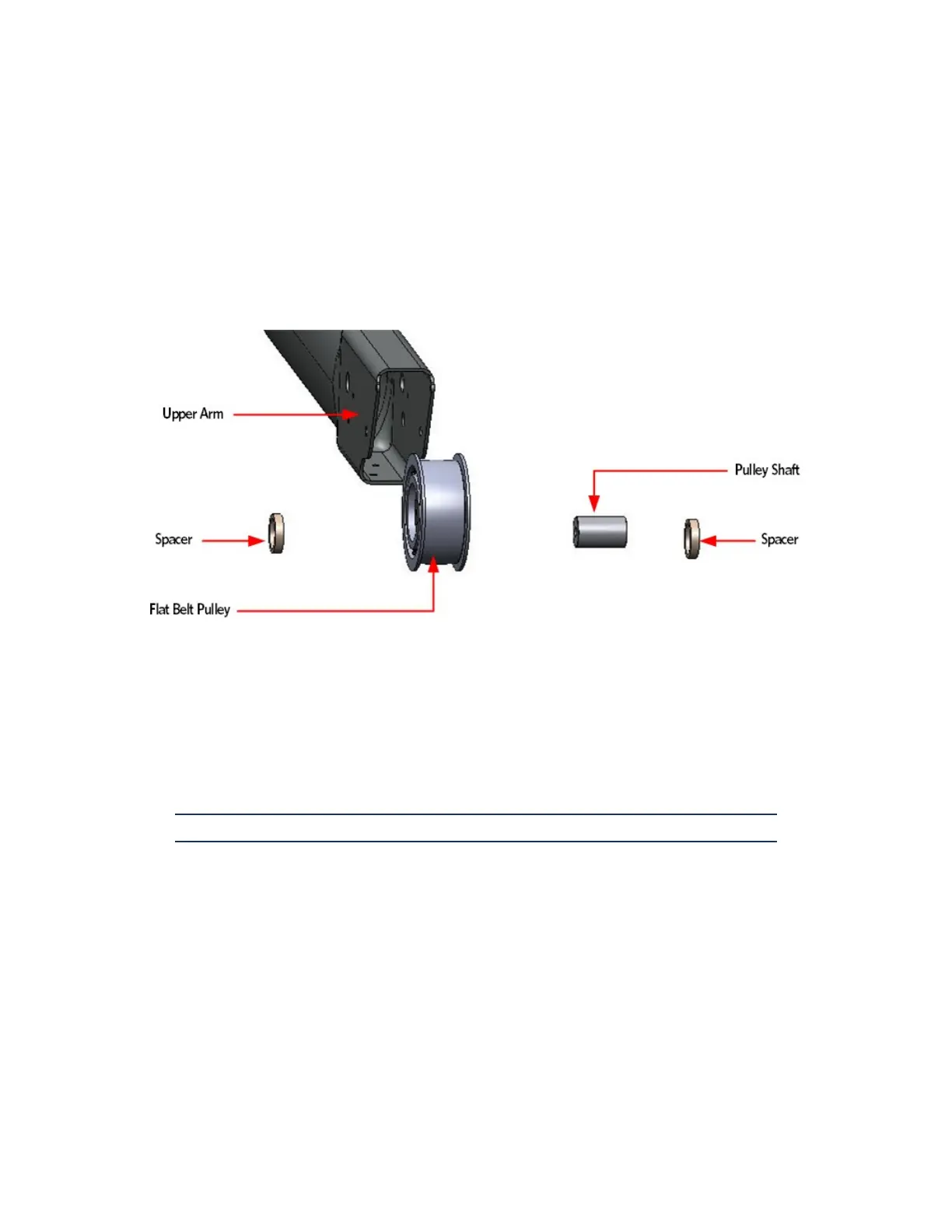

Figure 106: Upper Arm Flat Belt Pulley Removed
12 Slide the pulley shaft into the flat belt pulley, place one spacer
on each side of the flat belt pulley. Ensure the belt goes over the
top of the pulley. Insert the assembly into the upper arm.
13 Secure the flat pulley assembly to the upper arm using the mounting
bolt, washers and lock nut. Thread the mounting bolt from the inside
of the upper arm towards the outside of the upper arm, torque to 300
inch pounds (25 ft-lbs) or 25 foot pounds.
Note: Lock nut should be on the outside of the upper arm.
Upper Arm Grip Installation
14 Grasp the grip connecting ring located on each side of the upper arm
grip, pull out and place the grip over the flat belt pulley mounting
bolt.
15 Secure the upper arm grip to the upper arm using the two #10-24X.75
screws.
Repeat the process for the remaining upper arm grip.
