Upper Arm Grip Installation
42 Grasp the grip connecting ring located on each side of the upper arm
grip, pull out and place the grip over the flat belt pulley mounting
bolt.
43 Secure the upper arm grip to the upper arm using the two #10-24X.75
screws.
Repeat the process for the remaining upper arm grip.
Belt Guard Installation
44 Place the two halves of the belt guard so they are positioned around
the flat belt just below the upper arm. The smaller half should be
positioned so that the interlocking tabs are pointing toward the
front of the machine, and the guard toward the back. The larger half
should be positioned with the guard toward the front. Align the
interlocking tabs of the smaller half with the slots of the larger
half; rotate the halves together around the flat belt until the
locking tabs are locked.

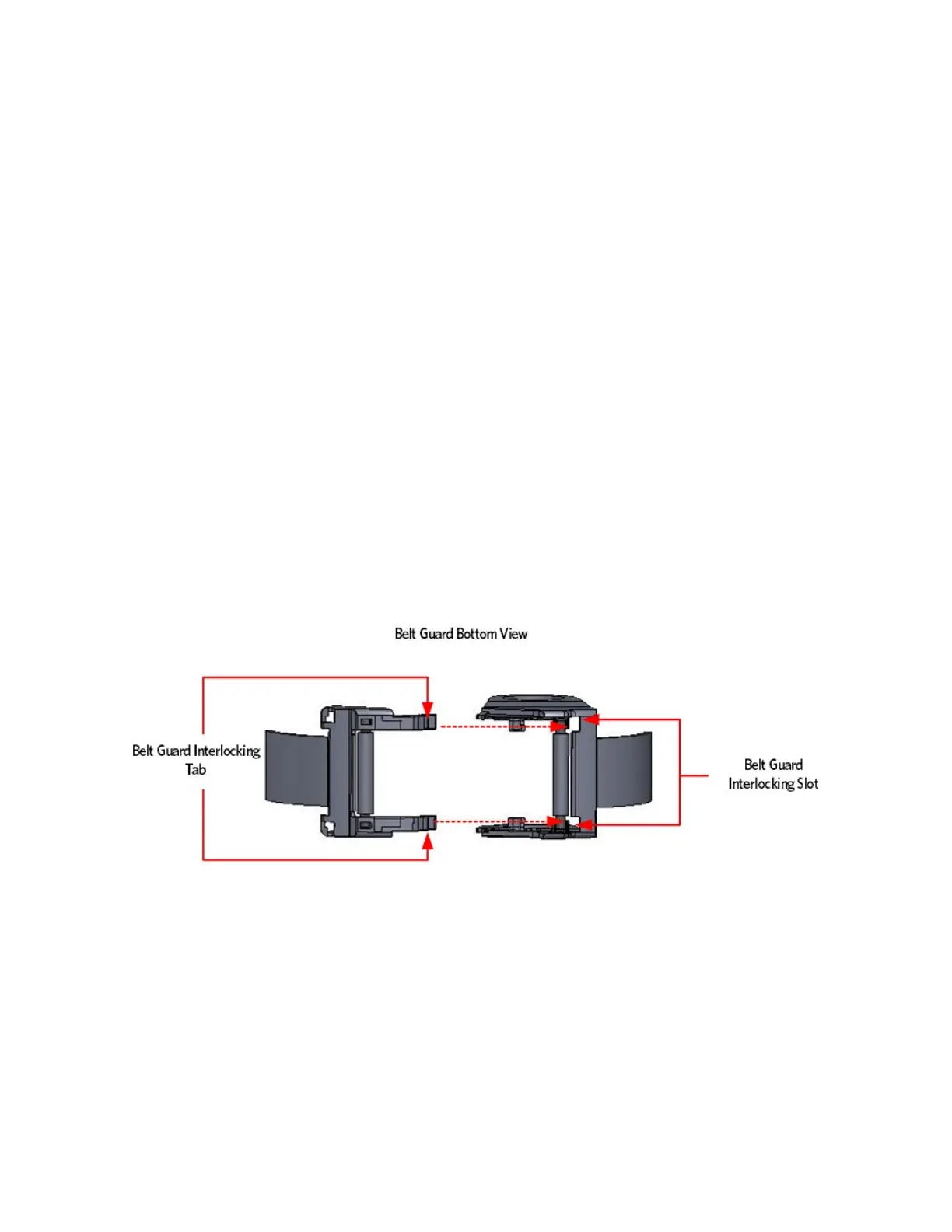

Figure 152: Belt Guard Interlocking Tabs and Slots
45 Grasp each belt guard mounting ring, lift the belt guard into
position over the upper arm mounting bolts, and then secure each
mounting ring to the connection ring.
