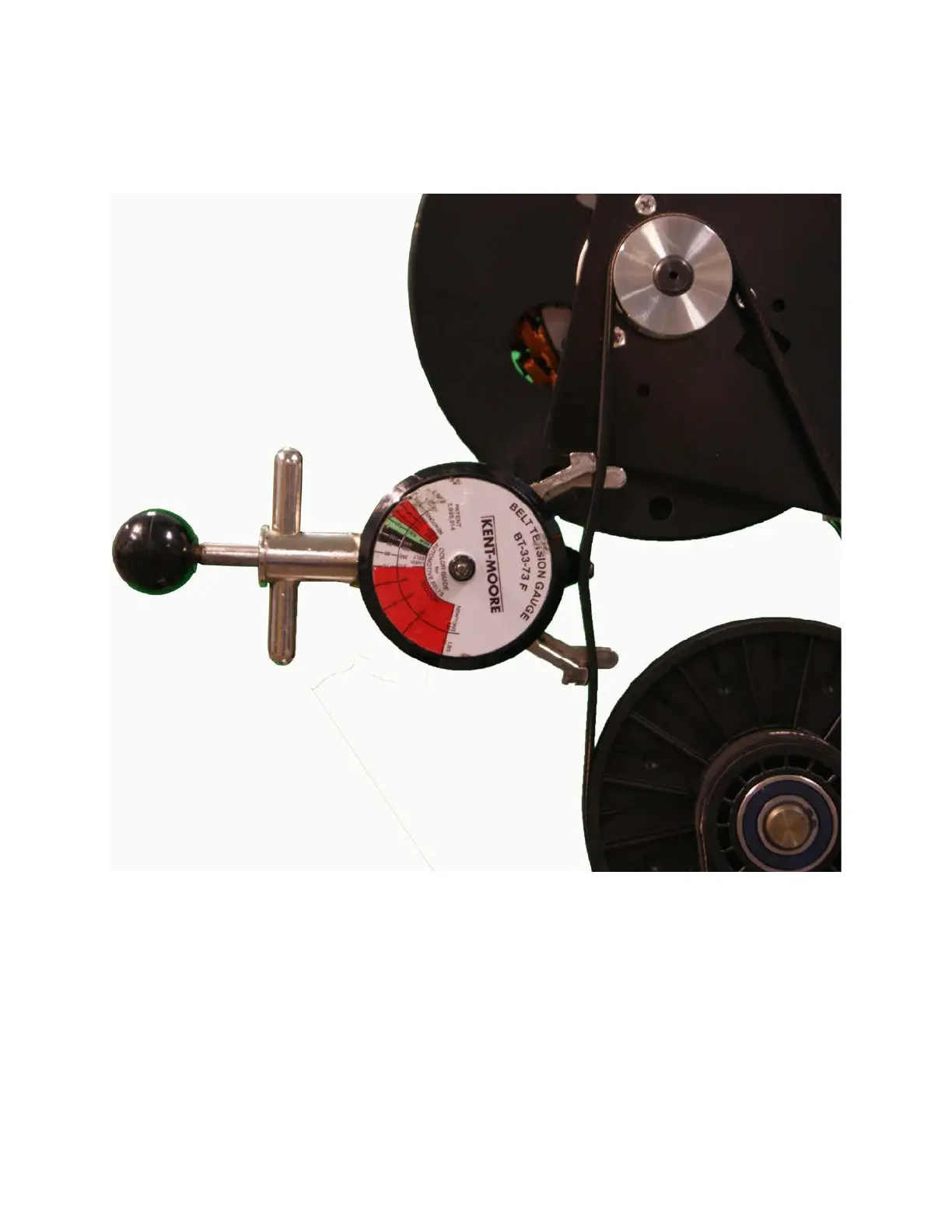

Figure 218: Generator Belt
12 The belt gauge should read approximately 85 ±5 lbs. If the belt
tension is significantly high or low the belt tension may be
adjusted by loosening the generator mounting bolts.
13 Loosen or tighten the 1/4-20 X 3 generator adjustment nut and bolt
until the belt gauge reads approximately 90 lbs.
14 Tighten the two 5/16-18 X 3 generator mounting bolts.
15 Select the QUICKSTART program and adjust the resistance  key until
resistance level 10 is displayed. Pedal the AMT for approximately
one minute, then recheck the belt tension.
16 The tension should read approximately 85 ±5 lbs.
