Accessing the P30 Diagnostic Software
The P30 Console diagnostic software consists of the following modes:
♦
Display Test
♦
Keyboard Test
♦
Heart Rate Test
♦
Brake Test
♦
RPM Test
♦
Battery Test
♦
Stride Position Test
Procedure:
1 The P30 Console uses the standard access codes to provide access to
the various software features. Use the PAUSE key and the numeric
keypad to enter the access code. The standard access codes use all
sequential key presses. The allowable delay between key presses is
short. If too much time is taken between key presses or the wrong
key is pressed the access procedure will be aborted. If the access
is aborted, it will be necessary to start over from the beginning.

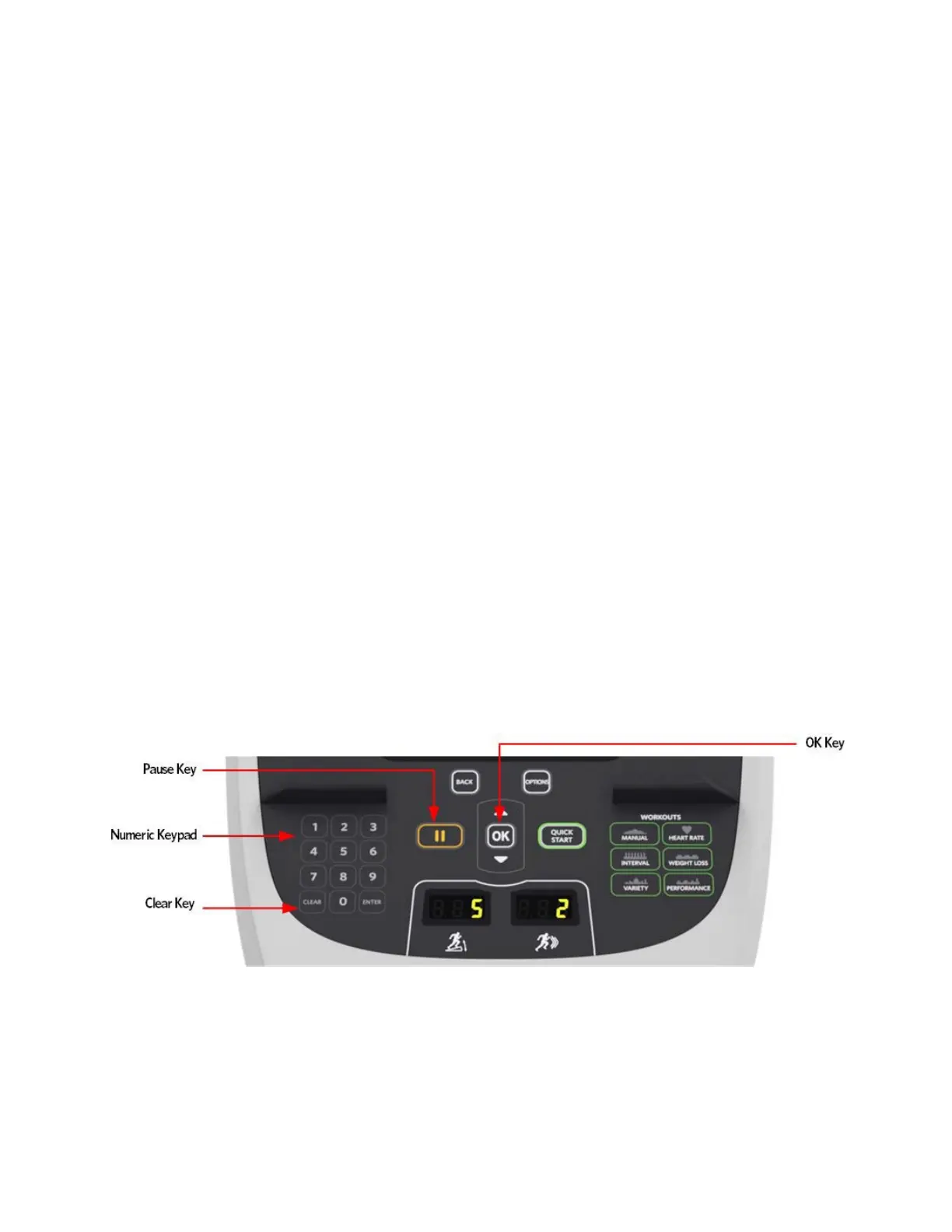

Figure 2: P30 Software Access
2 See P30 Diagnostic Software Menu Table (on page 14).
