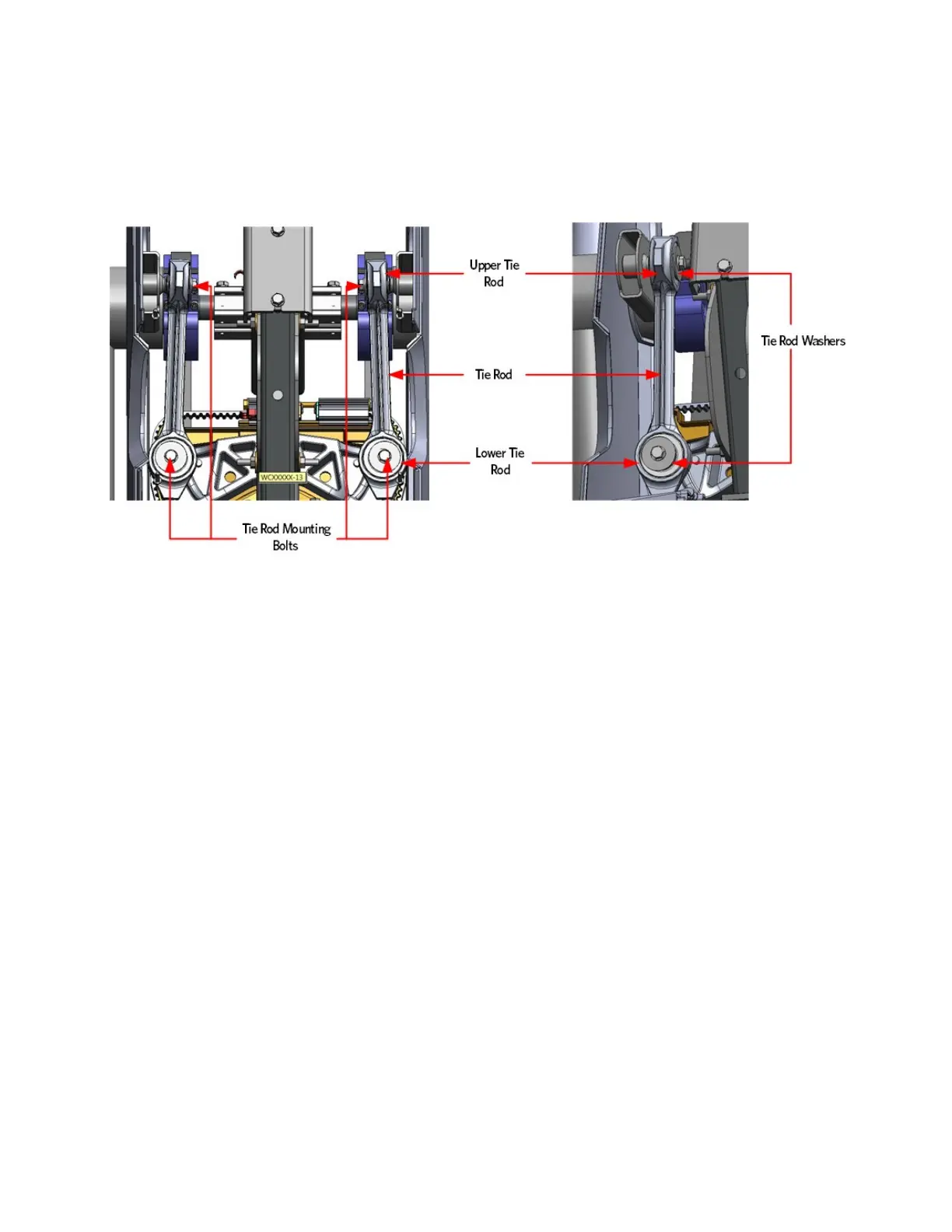

Figure 311: Tie Rods
Stride Dial Assembly Installation
11 Secure the stride dial assembly to the frame with the two screws,
do not fully tighten the screws.
12 Adjust the stride dial bracket unit the stride dial target is
centered between the two stride sensors on the stride dial PCA.
13 Fully tight in the two screws that secure the stride dial sensor to
the frame.
14 Reconnect the stride dial cable connector to the stride dial sensor,
ensure the cable is routed and secured away from the H-Brake cam
stops.
