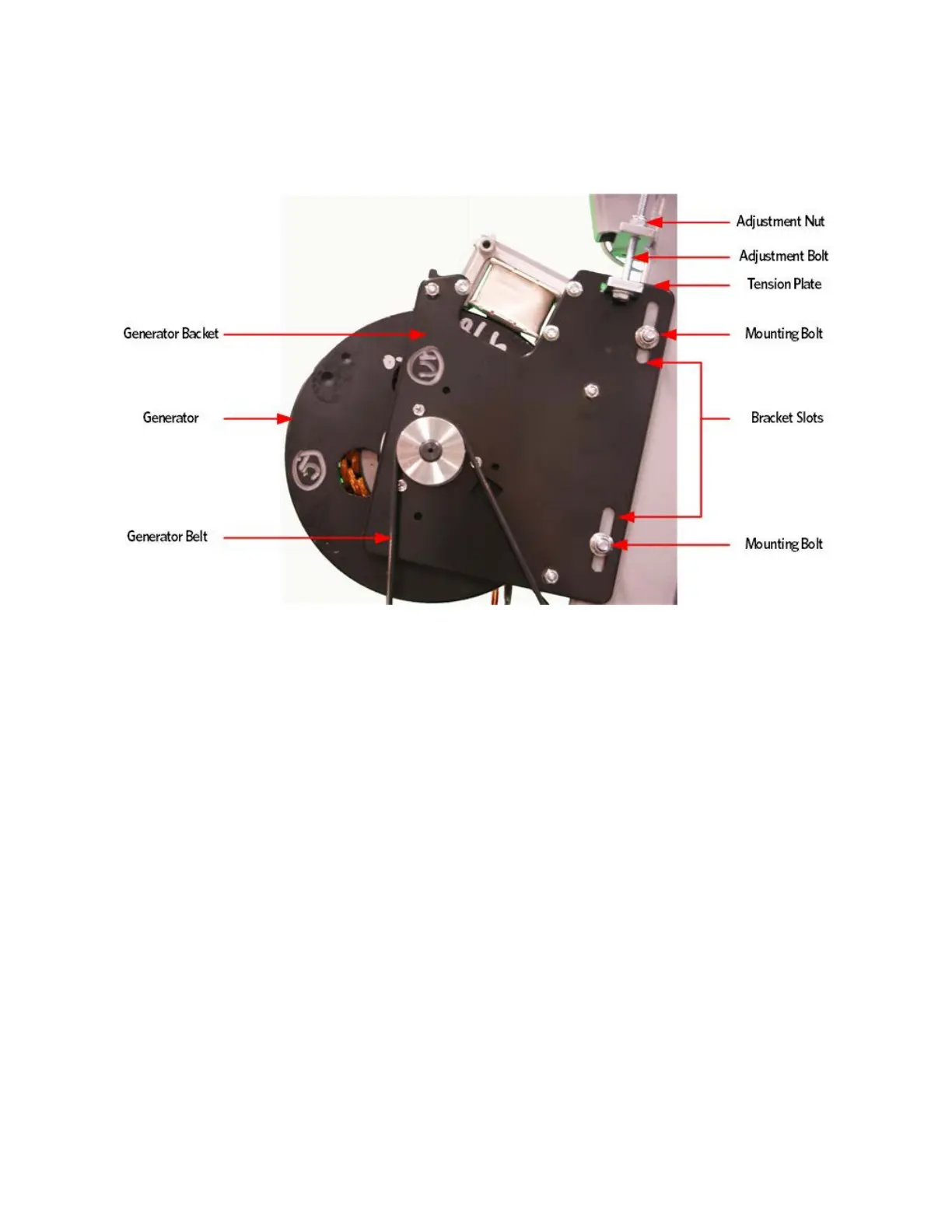

Figure 219: Generator
17 Replace the lower PCA and battery bracket and connect the cables as
per procedure, Replacing the Lower PCA and Battery Bracket (on page 270).
18 Replace the lower PCA cover as per procedure, Lower PCA Cover (see
"Removing the Lower PCA Cover" on page 268).
19 Replace the covers as per procedure, Cover Replacement (on page
152).
Replacing the Drive Input Pulley Belt
Drive Input Pulley Belt Replacement Procedure
1 Remove the covers as per procedure, Cover Replacement (on page 152).
2 Remove the tension from the inner flat belt pulleys by lifting up on
the stairarms, pulling the flat belts off the flat belt pulleys, and
then gently setting down the stairarm.
3 Place a belt gauge on the drive input belt as shown below.
