© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law

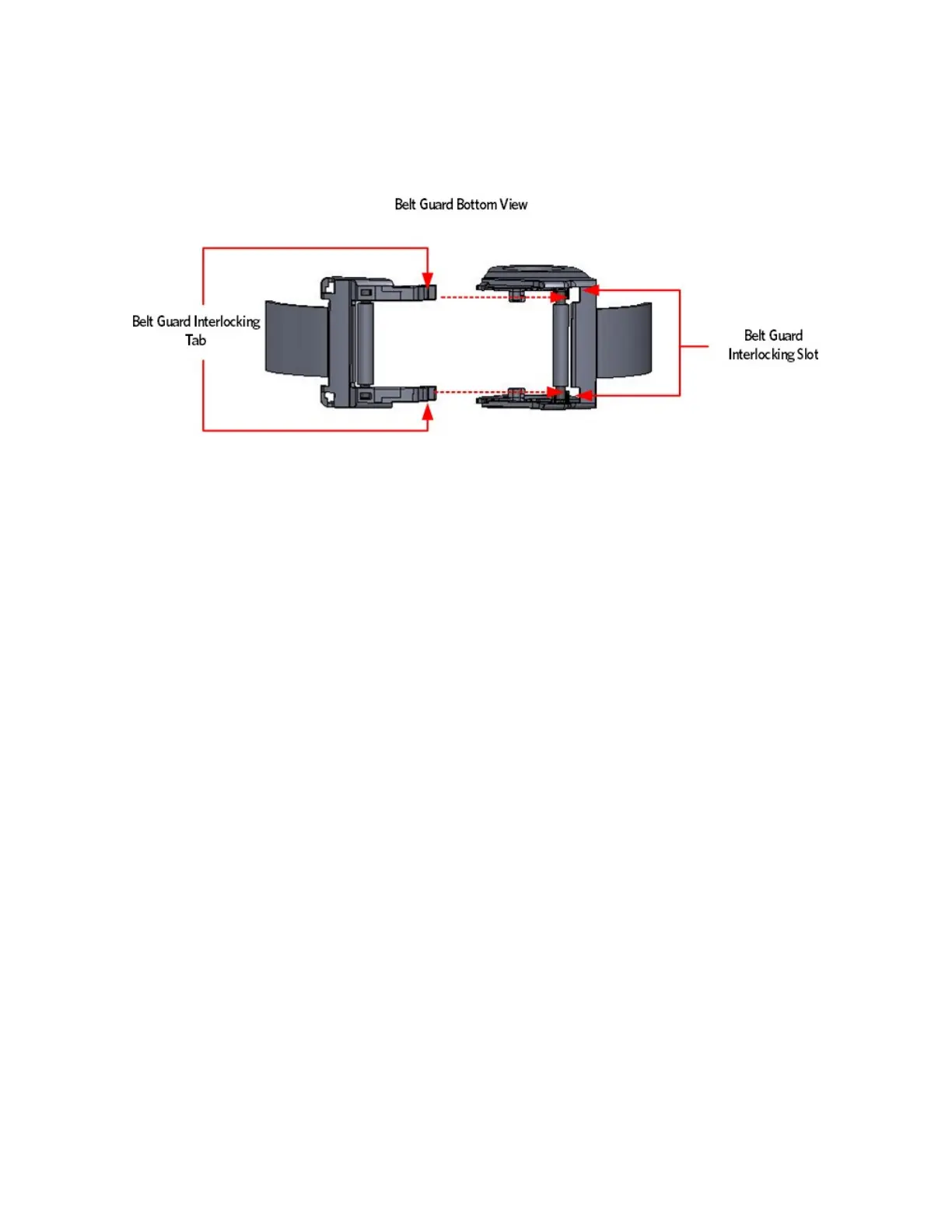

Figure 180: Belt Guard Interlocking Tabs and Slots
32 Grasp each belt guard mounting ring, lift the belt guard into
position over the upper arm mounting bolts, and then secure each
mounting ring to the connection ring.
33 Repeat the steps for the remaining belt guard.
34 Install the upper arm covers.
Stairarm Installation
35 Position the stairarm in the front arm.
36 Place the shaft of a Philips screw driver into the drain hole on the
bottom of the front arm and thread one of the two 1/2-13X1 screws
into stairarm. Using the installed screw, rotate the front arm
bearing until the screw driver engages into the bearing, locking the
bearing. You may have to rotate the bearing one full turn to align
the bearing lock hole with drain hole.
37 Once the screwdriver has locked the bearing preventing further
rotation, fully tighten the inside and outside mounting bolts,
torque to 83 foot pounds or 1000 inch pounds.
38 Remove the screwdriver from the drain hole.
39 Repeat the steps for the remaining stairarm.
