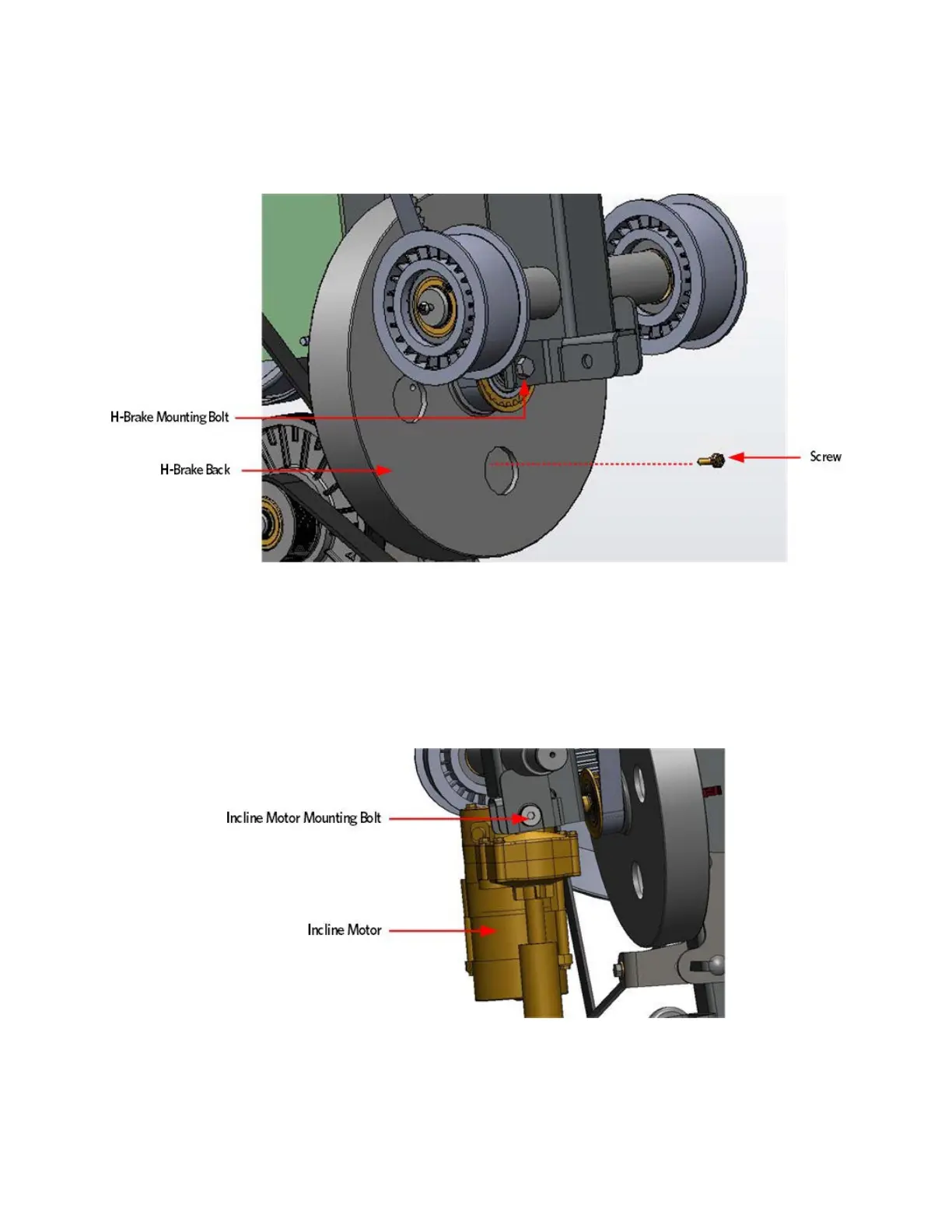

Figure 319: H-Brake Drum - Units Built After 10-1-1012
Incline Motor Installation
1 Attach the replacement Incline motor to the frame using the 3/8-16
mounting bolt.
Figure 320: Incline Motor Mounting
2 Connect the incline motor cable connector to the lower PCA and
replace the lower PCA cover as per procedure, Replacing the Lower PCA
and Battery Bracket (on page 270).
