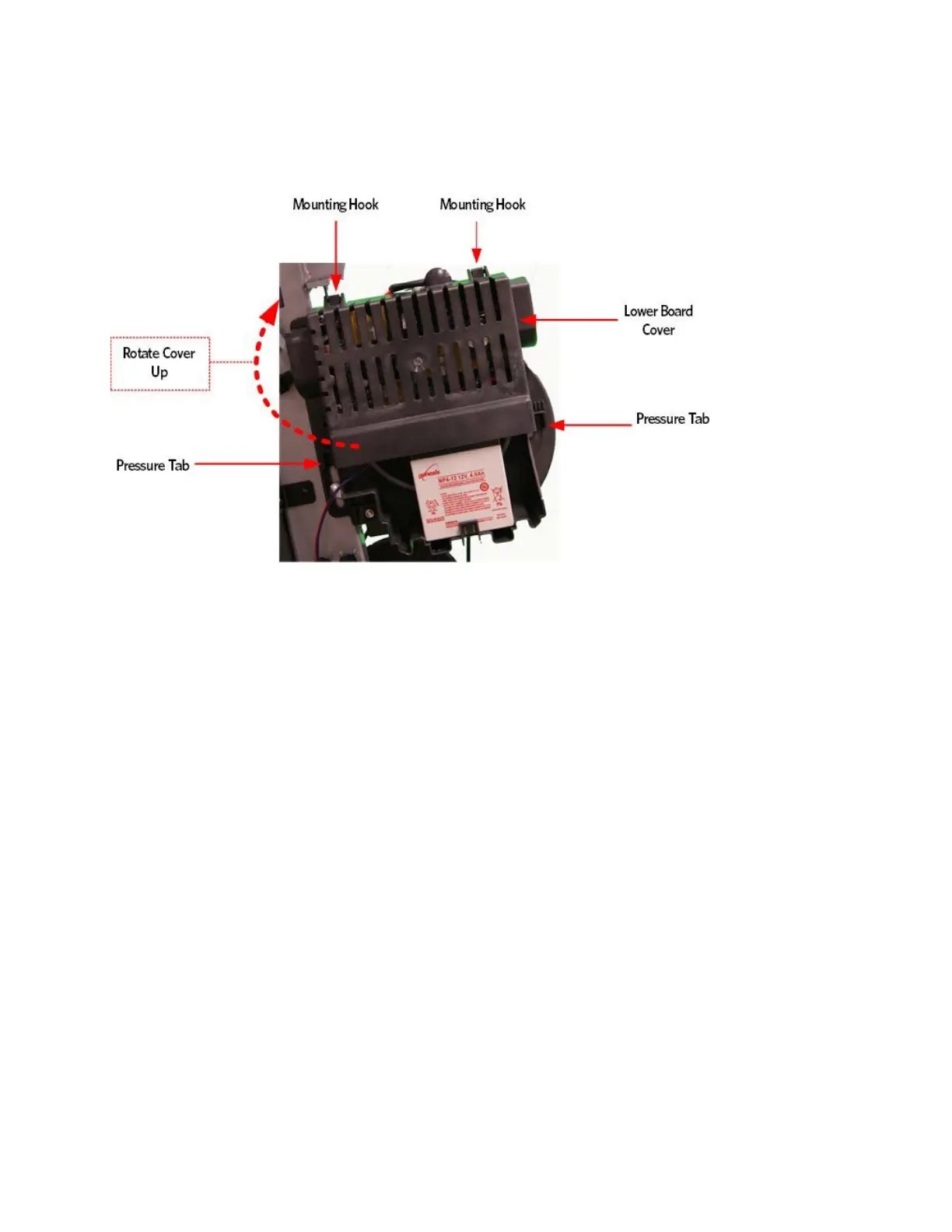

Figure 207: Lower PCA Cover
Removing the Lower PCA
1 Attach the wrist ESD strap to your arm, and then connect the ground
wire of the wrist strap to a grounding spot on the AMT frame.
2 Disconnect the data cable, incline motor cab le (Open Stride only),
generator cable, load cable, stride dial cable, battery cables, and
vertical sensor cable from the lower PCA.
3 Remove the two #10-24X.075 top corner screws that fasten the lower
board to the lower PCA bracket.
4 Lift the lower PCA up and out of the slots of the lower PCA bracket.
5 Slide the new lower PCA into the slots of the lower PCA bracket.
6 Fasten the lower PCA to the PCA bracket using the two #10-24X.075
screws removed in step 3. Do not over tighten.
7 Connect the data cable, incline motor cab le (Open Stride only),
generator cable, load cable, stride dial cable, battery cables, and
vertical sensor cable from the lower PCA..
8 Reinstall the lower PCA cover by interlocking the PCA cover hooks
and the PCA bracket hangers, lower the cover until the locking tabs
engage.
