28 Lift the stairarms and then thread the flat belts over the flat belt
pulleys.
29 Select the QUICKSTART program and adjust the resistance  key until
resistance level 10 is displayed. Pedal the AMT for approximately
one minute, then recheck the belt tension.

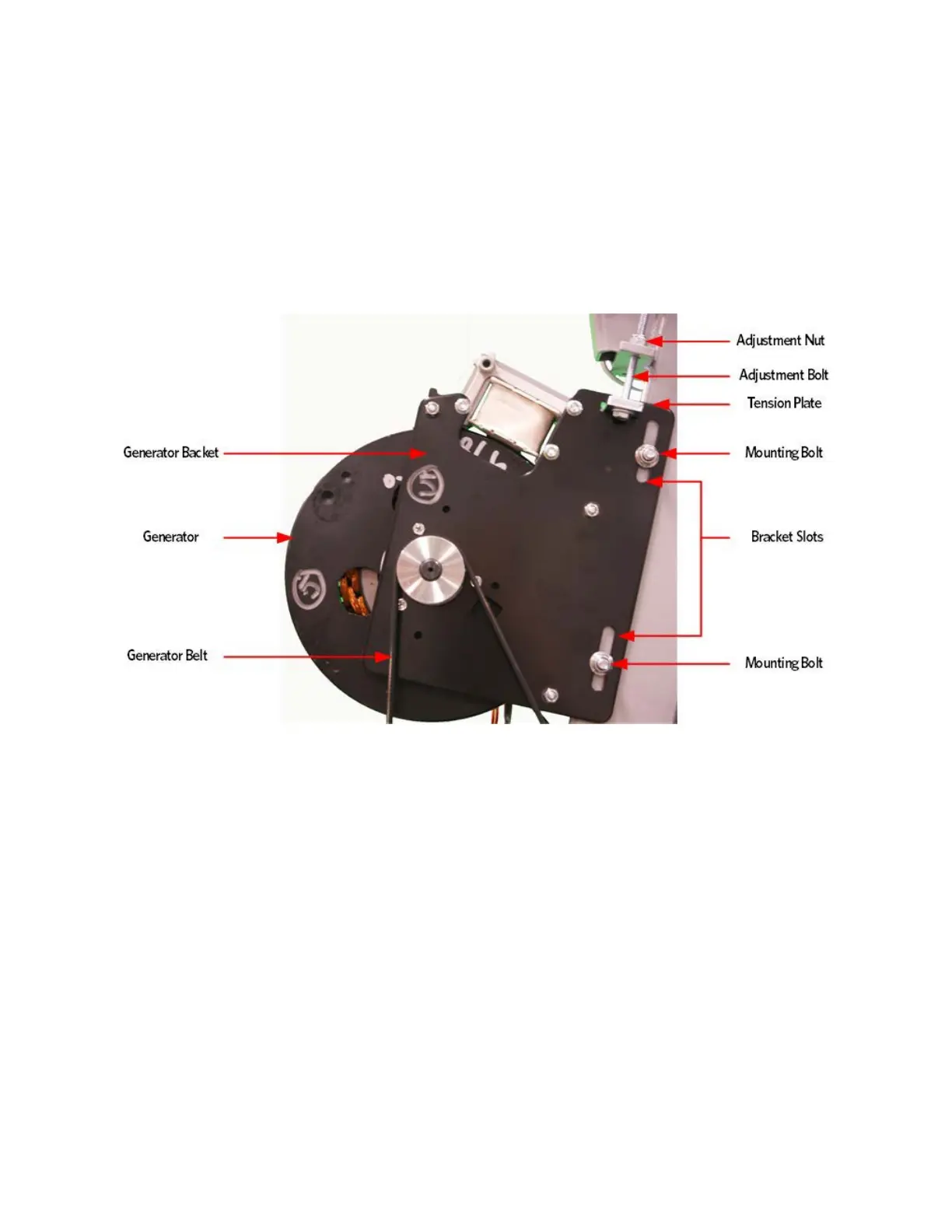

Figure 248: Generator
30 The drive input belt tension should read approximately 180 ± 10 lbs
and the generator belt tension should read approximately 85 ±5 lbs.
See Drive Belt Gauge Instructions (on page 142)
31 Lift the stairarms and thread the flat belts through the pulleys.
32 Replace the covers as per procedure, Cover Replacement (on page 152).
Replacing the Lift Arm Housing
Lift Arm Housing Replacement Procedure
1 Remove the covers as per procedure, Cover Replacement (on page 152).
2 Remove the tension from the inner flat belt pulleys by lifting up on
the stairarms, pulling the flat belts off the flat belt pulleys, and
then gently setting the stairarm down.
3 Loosen the two generator mounting bolts.
