Stairarm Removal
5 Place the shaft of a Philips screw driver into the drain hole on the
bottom of the front arm. Rotate the front arm bearing by turning the
outside mounting bolt that secures the front arm to the stairarm,
until the screw driver engages into the bearing and locks it. You
may have to rotate the bearing one full turn to align the bearing
lock hole with drain hole.
6 Once the screwdriver has locked the bearing preventing further
rotation, fully remove the inside and outside mounting bolts. Remove
the stairarm.

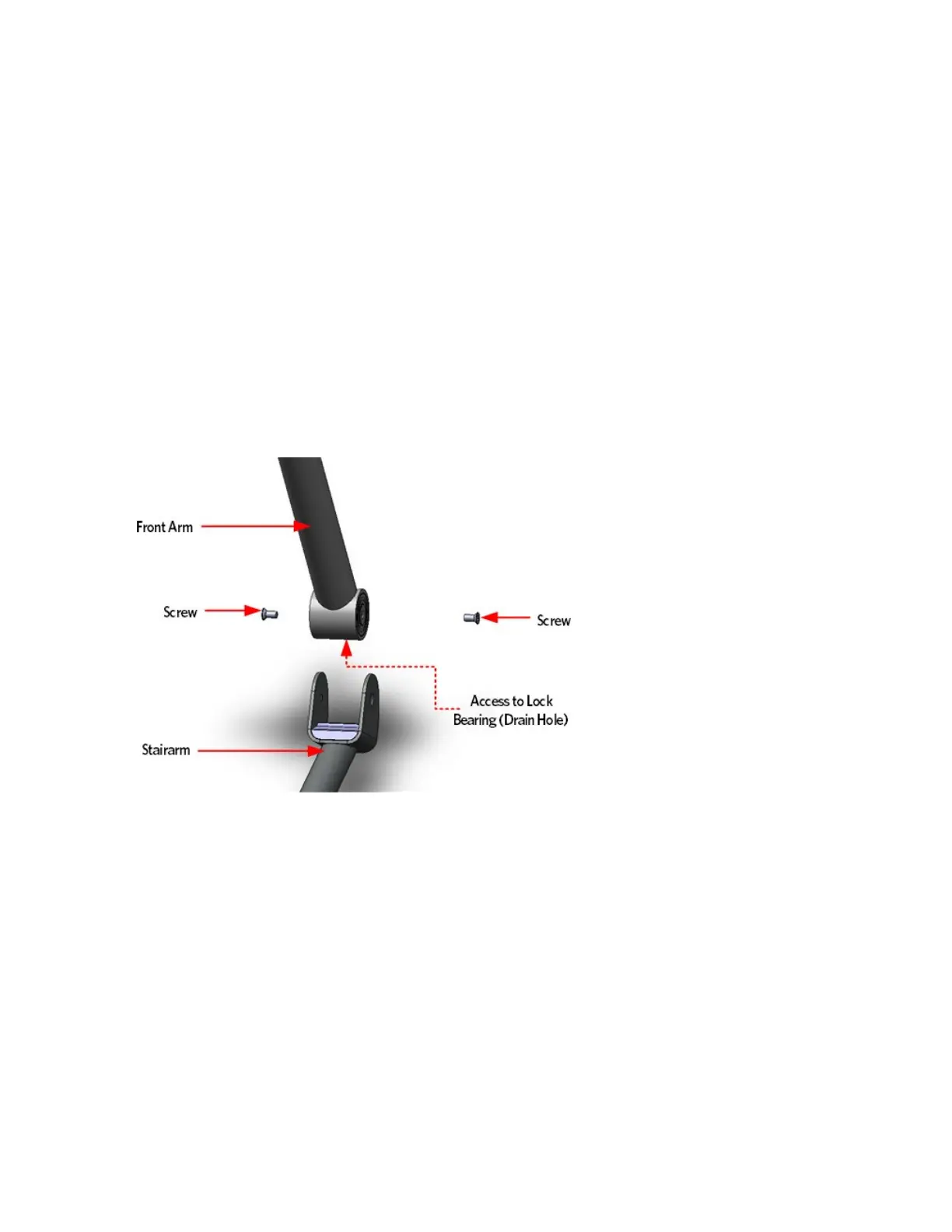

Figure 114: Stairarm and Front Arm Screw Locations
Stairarm Pedal Removal
7 Pivot the stairarm up into a vertical position. Note: The following
procedure will be much more efficient if a assistant holds the
stairarm up.
8 Remove the Five screws and washers that secure the stairarm pedal to
the stairarm, remove the stairarm pedal.
