4 Loosen the generator adjustment bolts until the top of the bracket
slots are resting on the generator mounting bolts.

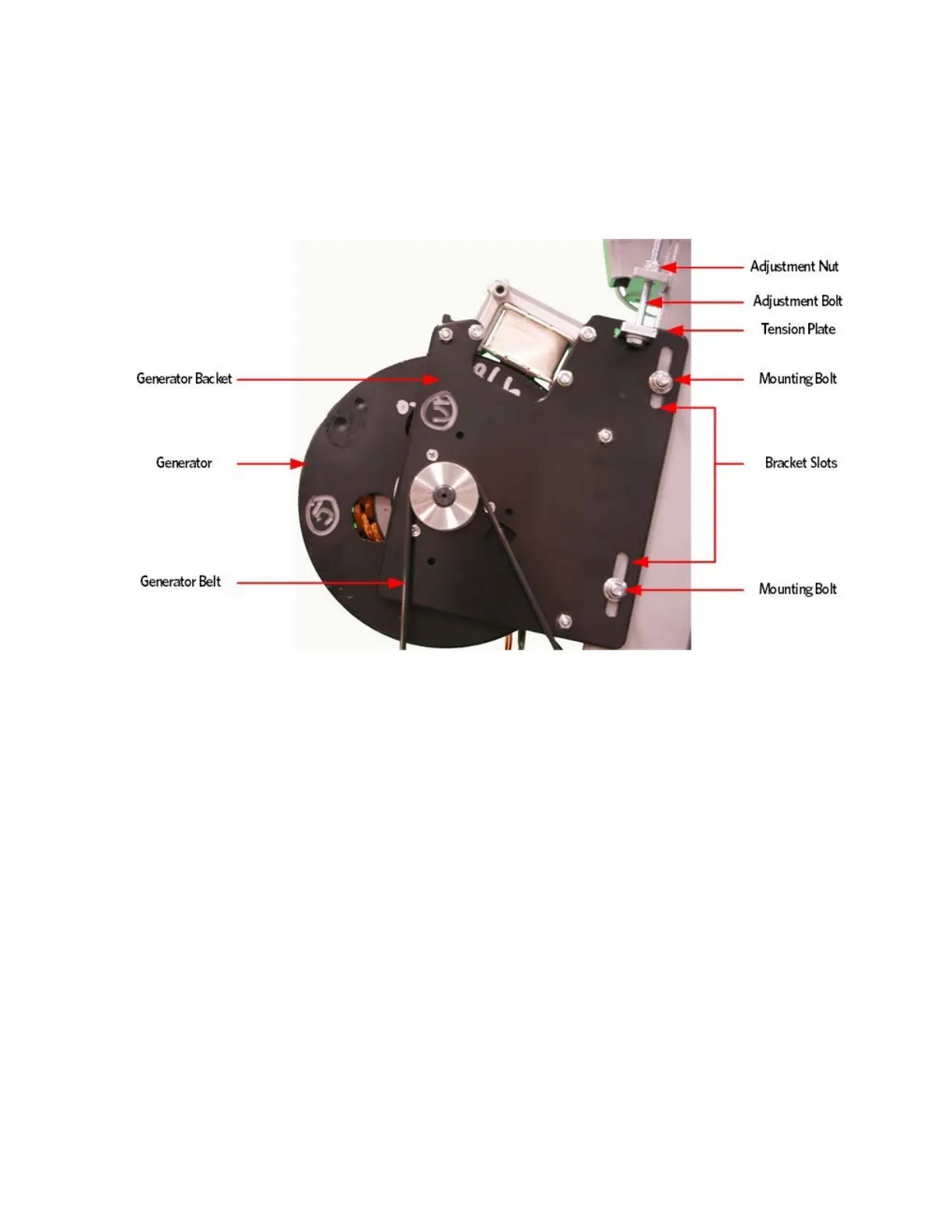

Figure 224: Generator
5 Loosen the two step up pulley mounting bracket bolts.
6 Loosen the step up pulley adjustment bolt until tension has been
removed from the input pulley belt and sufficient slack in the belt
so that it may be removed from the pulleys.
7 Remove the generator and drive input pulley belts from the step up
pulley.
8 Remove the snap ring that secures the step up pulley to the axle,
remove the step up pulley and wave washer.
9 Place the wave washer on the axle and then the replacement step up
pulley, secure the step up pulley to the axle with the snap ring.
10 Place the generator and input pulley belts over the step up pulley.
To Next Page
