Precor AMT Series - Replacing the Generator

© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law
Page 276

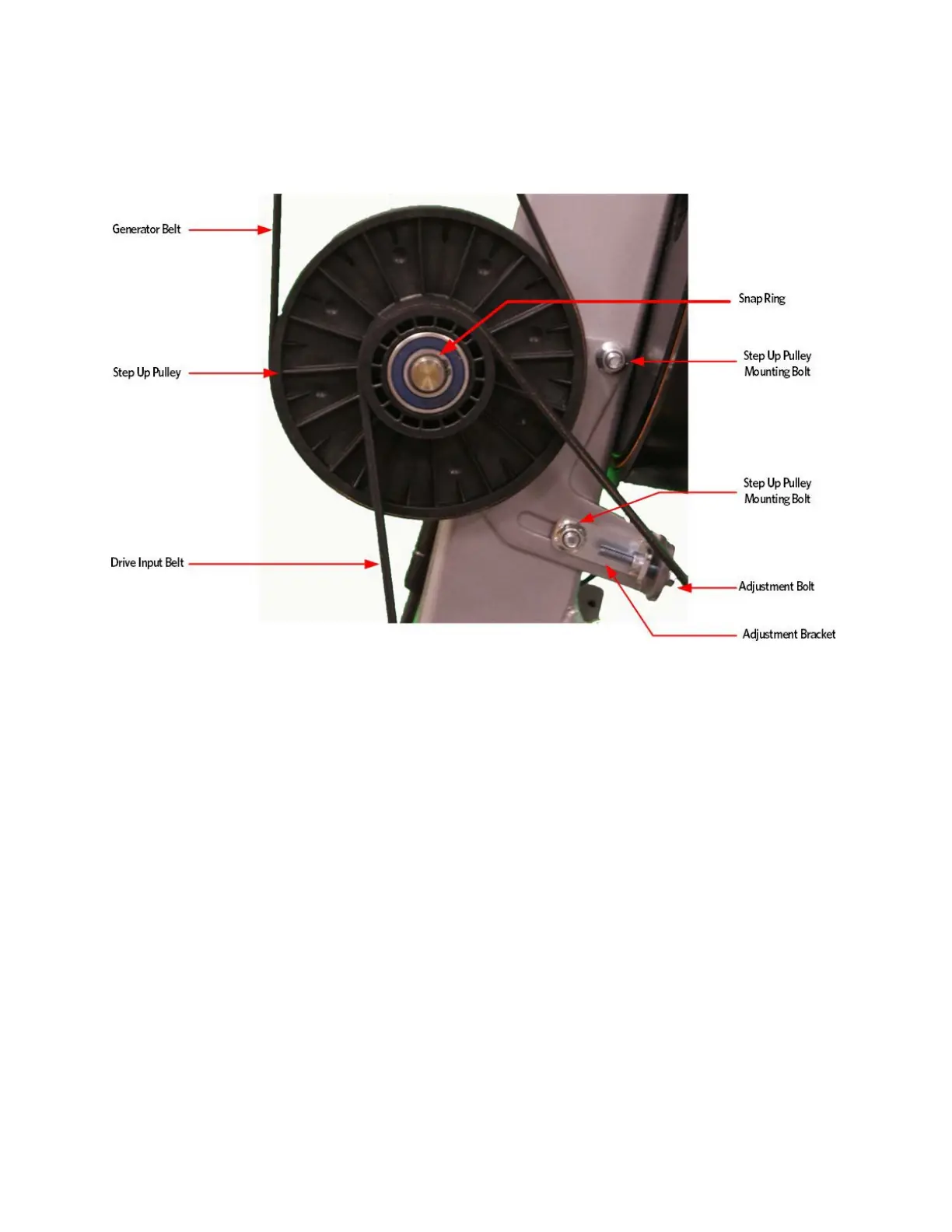

Figure 214: Step Up Pulley
14 Tighten the two step up input pulley mounting bolts. Torque to 160
inch pounds
15 Install the generator belt over the step up pulley and generator
pulley.
16 Place a belt gauge on the generator belt as shown in below.
