Page 32

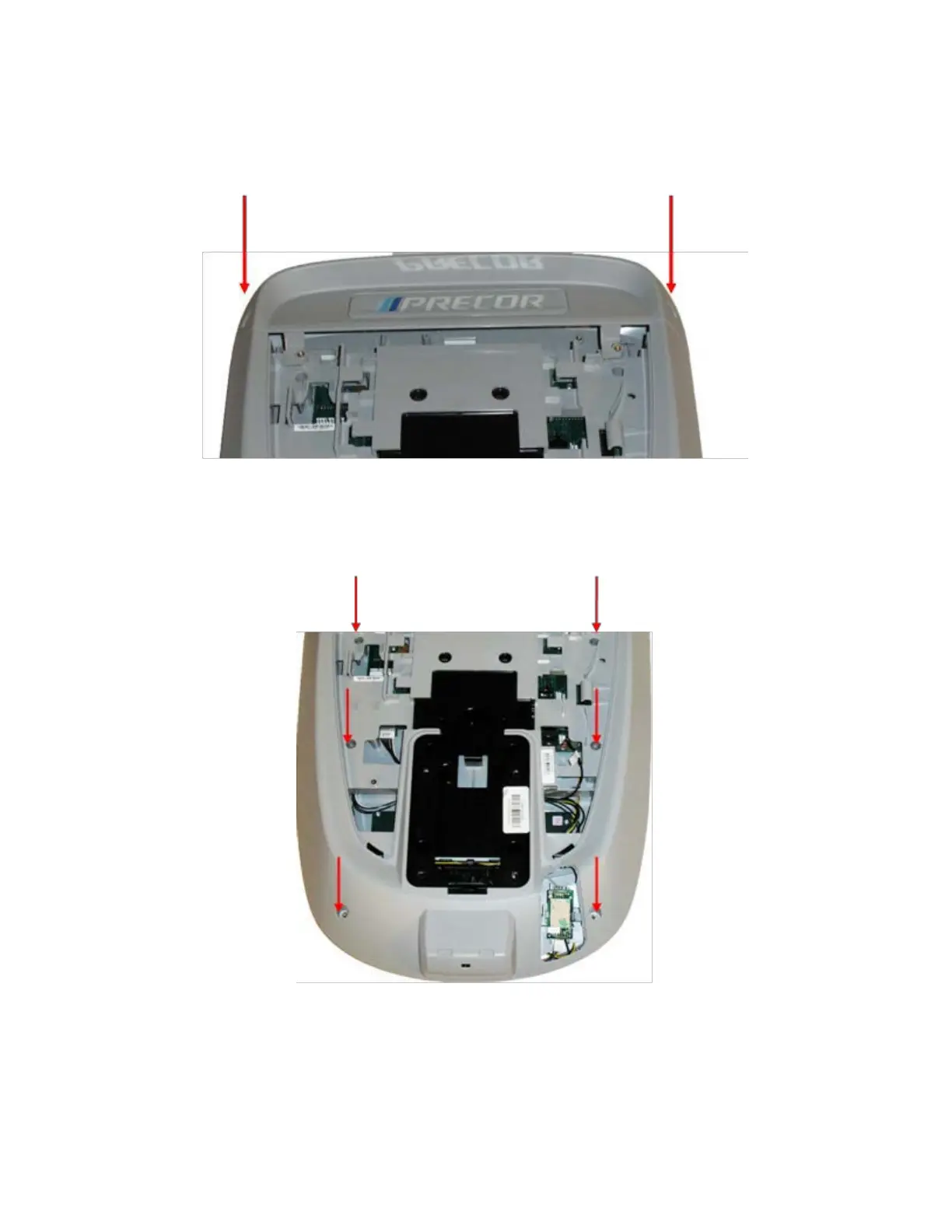

Figure 8: Option Cap Back Cover
11 Remove the 6 screws that fasten the rear cover from the console and
remove.
Figure 9: Rear Console Cover
12 Disconnect the Metric cable (J5), Machine Controls cable (J4),
Option Cap cable (J6, if applicable), Keypad Metric cable (J2) and
HR cable (J10) from the Upper PCA board.
13 Remove the five screws that fasten the Upper PCA board to the
console and remove the Upper.
