12 Remove the Incline motor mounting bolt and remove the Incline motor.

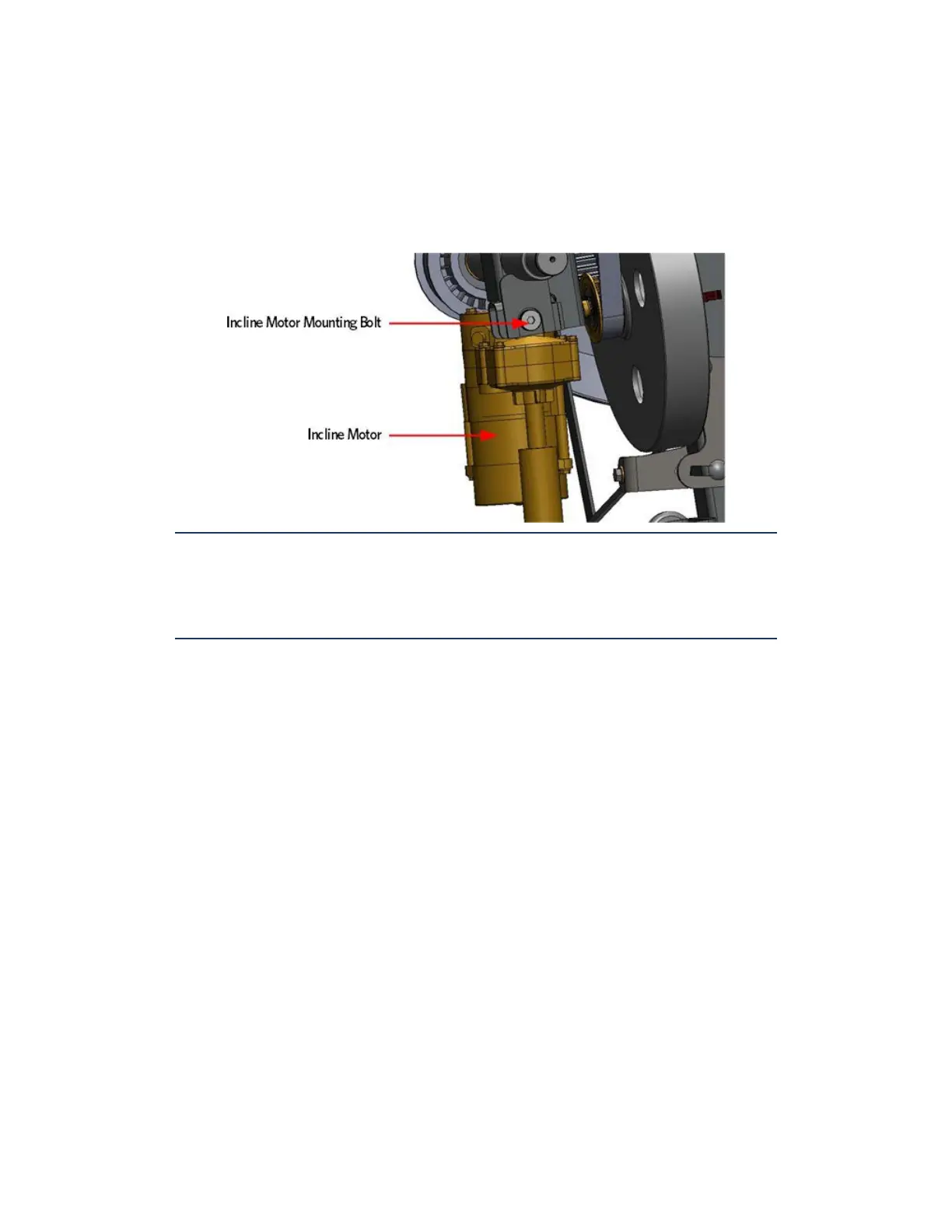

Figure 317: Incline Motor Mounting
Note: On 10/1/2012 the H-Brake 90 degree mounting bracket was
removed from the front side of the H-Brake Drum. The H-Brake Drum was
then secured with a single screw through the front side of the H-Brake
into the frame. The following steps will describe the removal and
installation of the H-Brake Drum for both configuration.
H-Brake Drum Removal and Installation - Units Built Prior to 10/1/2012
13 Remove the screw that secures the H-Brake drum assembly to the 90
degree bracket mounted on the frame.
14 Remove the 5/16-18 X 4 bolt and washer that secure the H-Brake
assembly drum to the frame and then remove the H-Brake drum
assembly.
15 Hand Tighten the replacement H-Brake assembly to the frame using the
5/16-18 X 4 bolt and washer removed in the previous step.
16 Fasten the screw that secures the H-Brake drum assembly to the 90
degree bracket mounted on the frame.
17 Torque the H-Brake mounting bolt to 600 inch pounds (50 ft-lbs).
