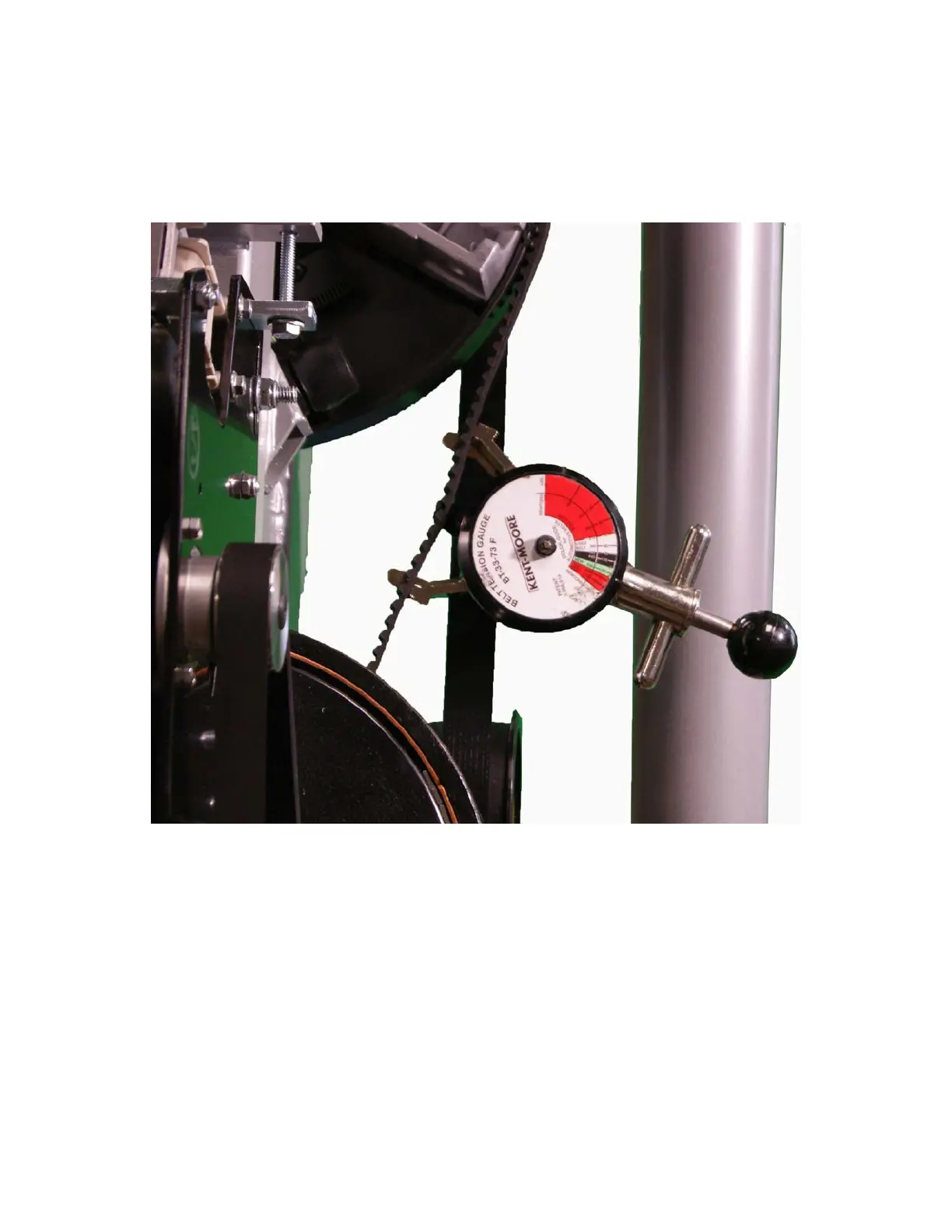

Figure 323: H-Brake Belt Tension Gauge
17 The belt gauge should read approximately 110 lbs. If the belt
tension is significantly high or low the belt tension may be
adjusted by loosening or tightening the H-Brake adjustment bolt.
18 Replace the covers as described per procedure, Cover Replacement (on
page 152).
Replacing the Gas Shock
Replacing the Gas Shock
1 Remove the covers per procedure, Cover Replacement (on page 152).
