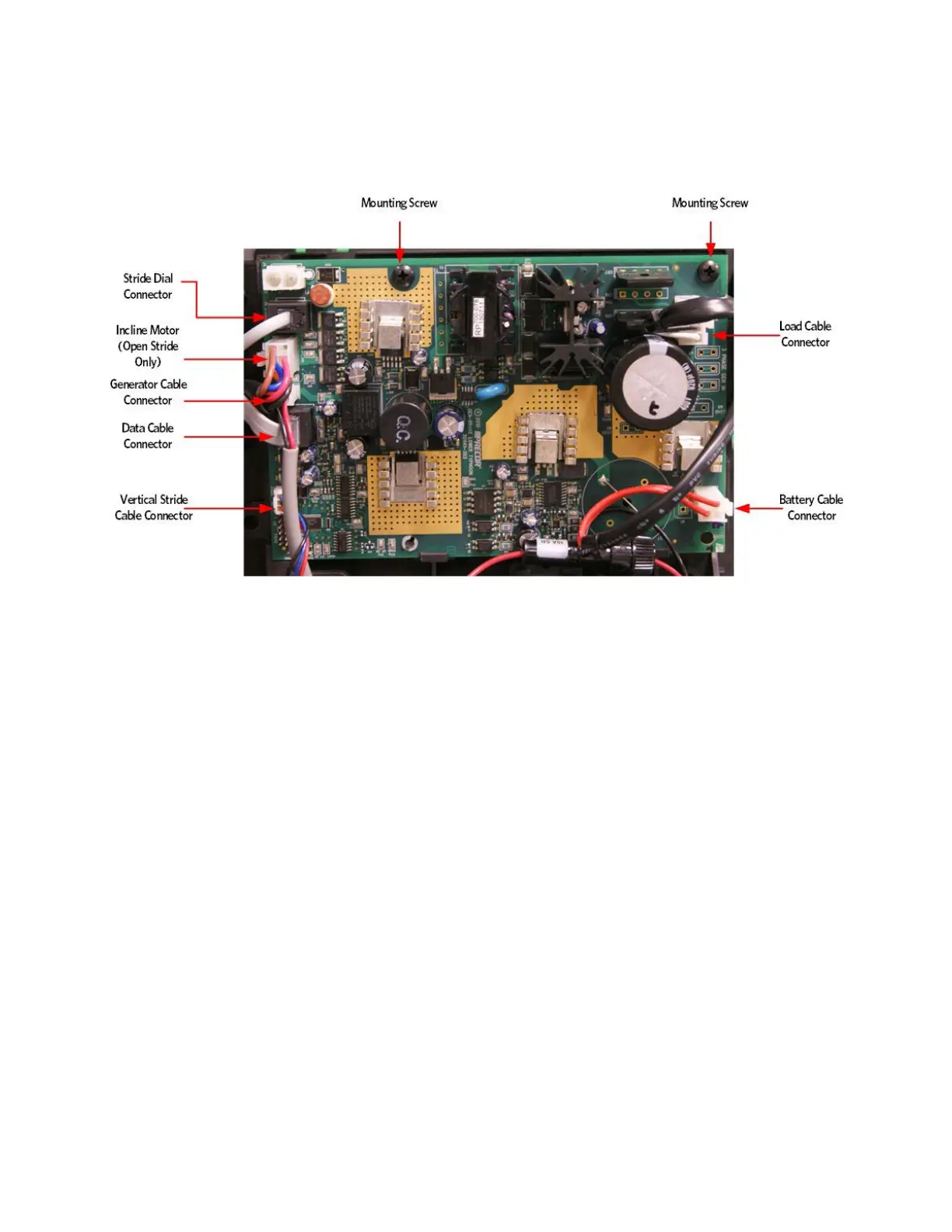

Figure 208: Lower PCA
Replacing the Lower PCA and Battery Bracket
Procedure
1 Remove the main body covers as per procedure, Cover Replacement (on
page 152).
2 Remove the lower PCA cover as per procedure, Lower PCA Cover (see
"Removing the Lower PCA Cover" on page 268).
3 Disconnect the data cable, incline motor cab le (Open Stride only),
generator cable, load cable, stride dial cable, battery cables, and
vertical sensor cable from the lower PCA
4 Remove the lower PCA as per procedure, Lower PCA (see "Removing the
Lower PCA" on page 269).
5 Remove the #10-24X.75 screw located at the bottom left corner that
secures the bracket to the frame.
6 Carefully disengage wires form the securing clips on the lower PCA
battery bracket.
