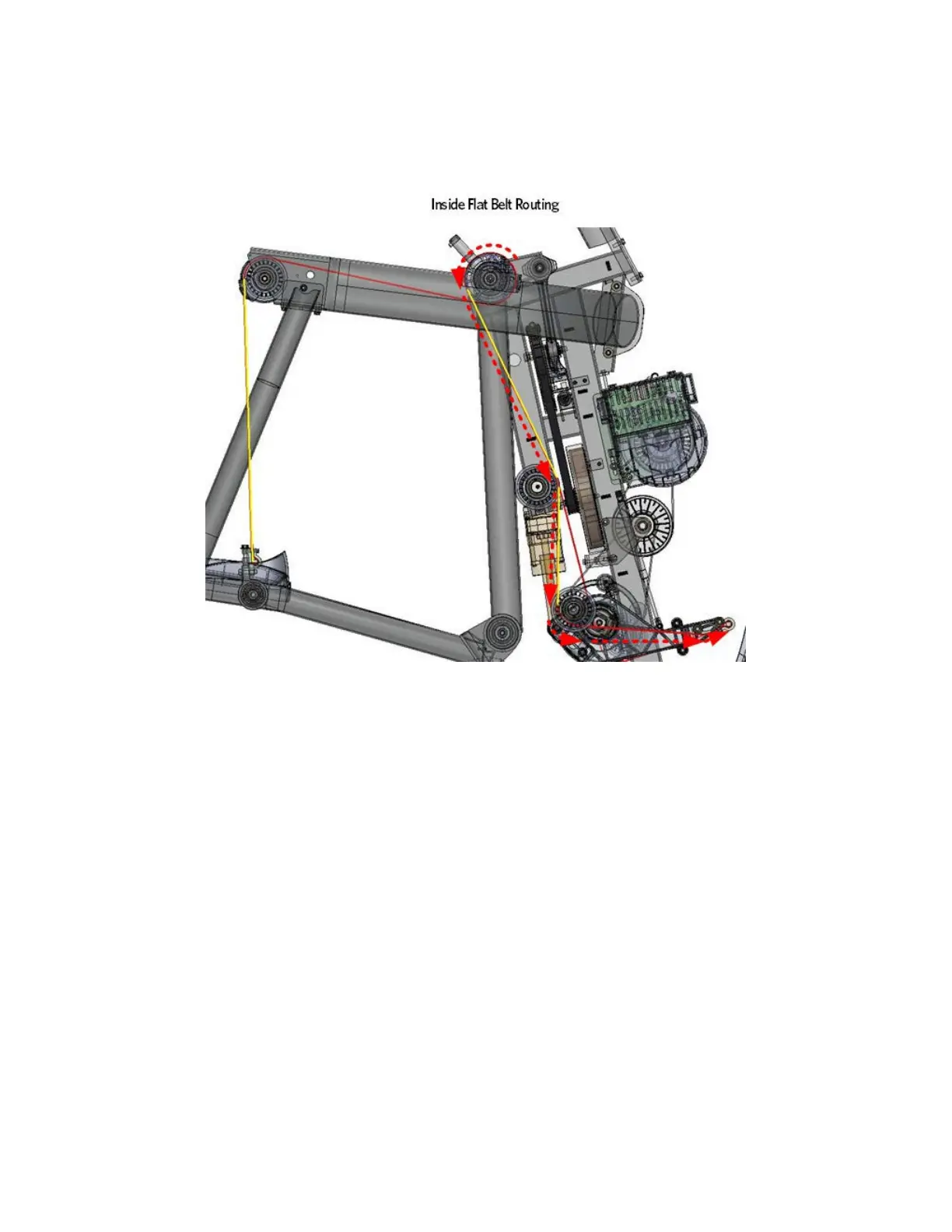

Figure 129: Inside Flat Belt Routing
Flat Belt Installation - Front Clamp
18 Install a replacement 1/4-20X1 screw and a shim in one of the clamp
screw holes, do not fully tighten at this time.
19 Loop the end of the flat belt to the 10 inch mark. While holding the
flat belt end on the 10 mark, work the loop into the terminal belt
clamp. A 1/2 inch deep set socket can be used to assist in pushing
the belt into place. When the flat belt loop is about half way into
the terminal clamp, push the pin into the flat belt loop.
20 Continue to work the flat belt loop and pin into the terminal clamp
until the side of the flat belt is resting next to the clamp screw.
Ensure the pin is centered within the terminal clamp.
