© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law
♦
What happened or failed to happen.
♦
The action taken by the user just before the problem occurred.
♦
Problem-related information (such as how far into the program the
problem occurred, the work level being used when the problem
occurred, error code displayed, etc.).
♦
The frequency of occurrence.
Replacing the Upper PCA
1 Set the treadmill circuit breaker in the off position and unplug the
treadmill’s line cord from the AC outlet. (TRM only)
2 The PCA’s in the console are static sensitive. They can be damaged
if proper static prevention equipment is not used. Attach an anti-
static wrist strap to your arm, and then connect the ground lead of
the wrist strap to the treadmill’s frame ground.
3 Remove the two screws that fasten the dash transition cover and
remove the cover.

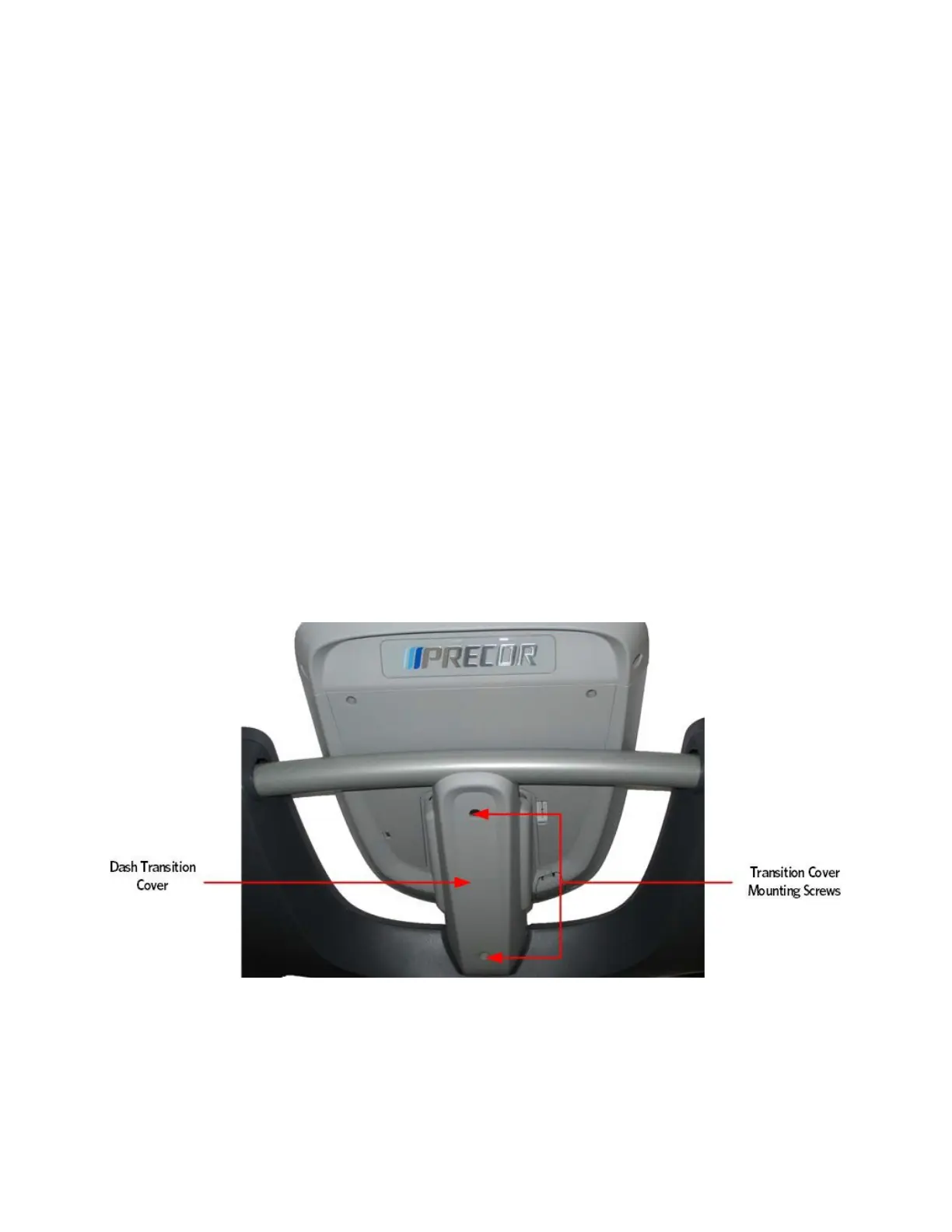

Figure 3: Dash Transition Cover – (TRM only)
4 Remove the four screws that fasten the console to the dash mounting
plate.
To Next Page
