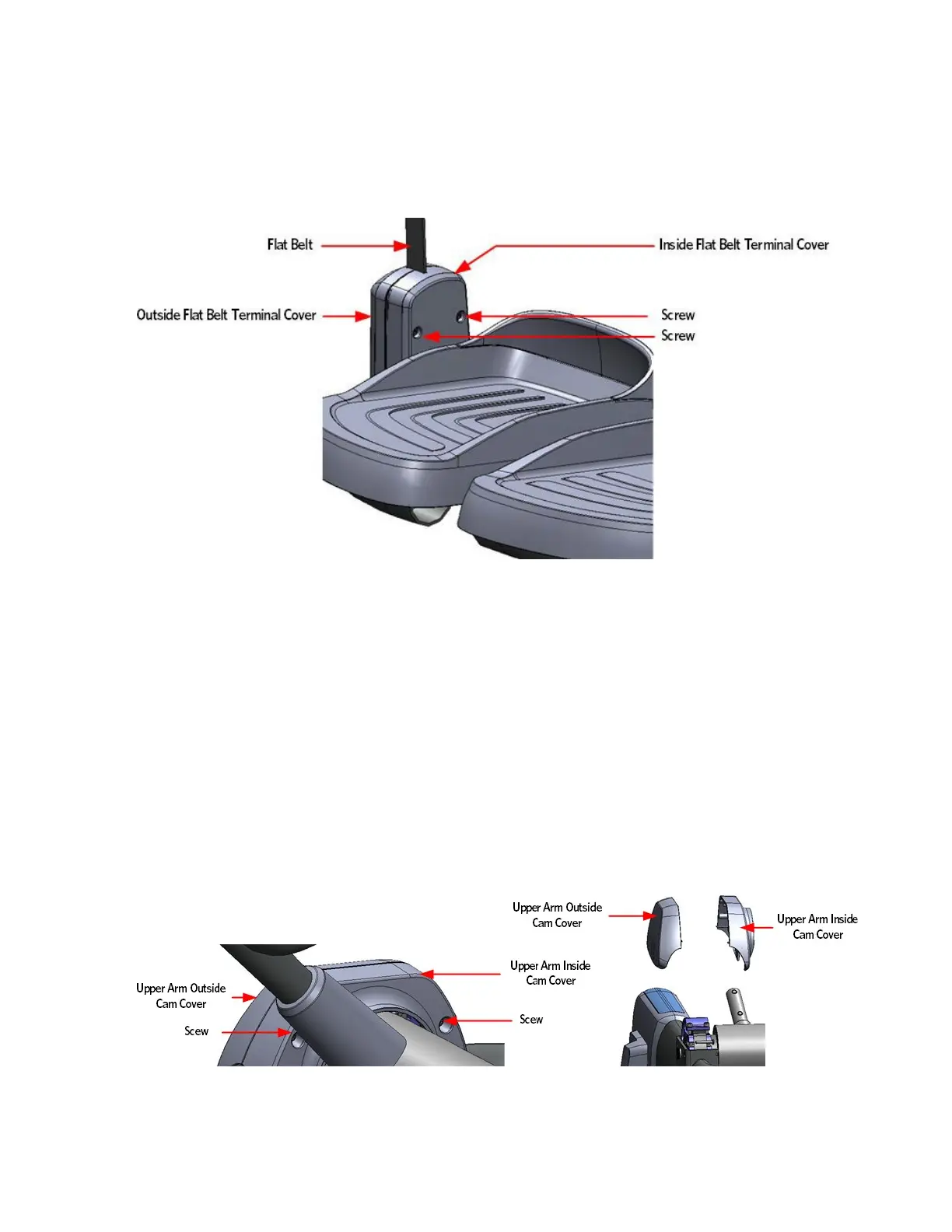

Figure 80: Flat Belt Terminal Covers
Upper Arm Cam Cover Replacement
1 Slide the vertical handlebar boot cover up the handlebar to gain
access to the upper arm cam cover screws.
2 Remove the two screws that secure the upper arm cam covers to the
upper arm, remove the covers.
3 Secure the replacement upper arm cam covers to the upper arm using
the two screws removed in step 2.
Figure 81: Upper Arm Cam Covers
