34 Monitor the movement of the belt through the flat belt clamps until
one or both ends of the flat belt has one belt segment extending
beyond the flat belt clamp.

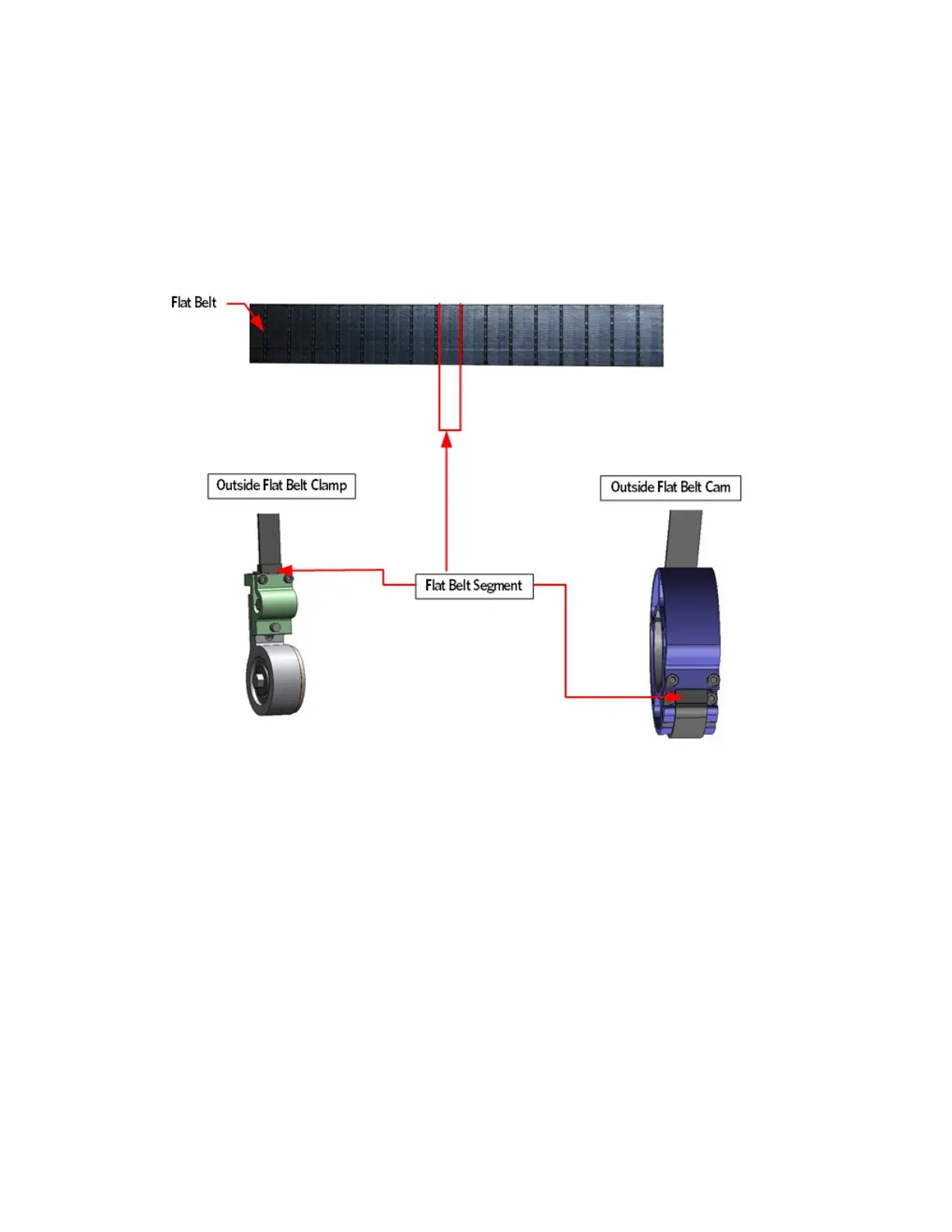

Figure 149: Outside Flat Belt Alignment
35 If one of the flat belt ends reaches the one segment measurement
before the other end, stop the downward pressure on stairarm pedal
and tighten the flat belt clamp screws on the flat belt end that has
reached the one segment measurement. Torque to 120 inch pounds.
Resume applying downward pressure to the stairarm pedal until the
remaining flat belt end reaches the one segment measurement. Tighten
the two flat belt screws and torque to 120 inch pounds.
36 Repeat the procedure for the remaining outside flat belt
replacement.
Adjusting the Stairarm Pedal Height
37 Loosen, but do not remove the stairarm adjustment stop bolt.
38 Push one of the stairarm pedal's down to its lowest level. Measure
the distance from the bottom of the stairarm tube to the top of the
center beam frame, the distance between the stairarm tube and the
center beam frame should be 3 7/8 inches.
