© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law

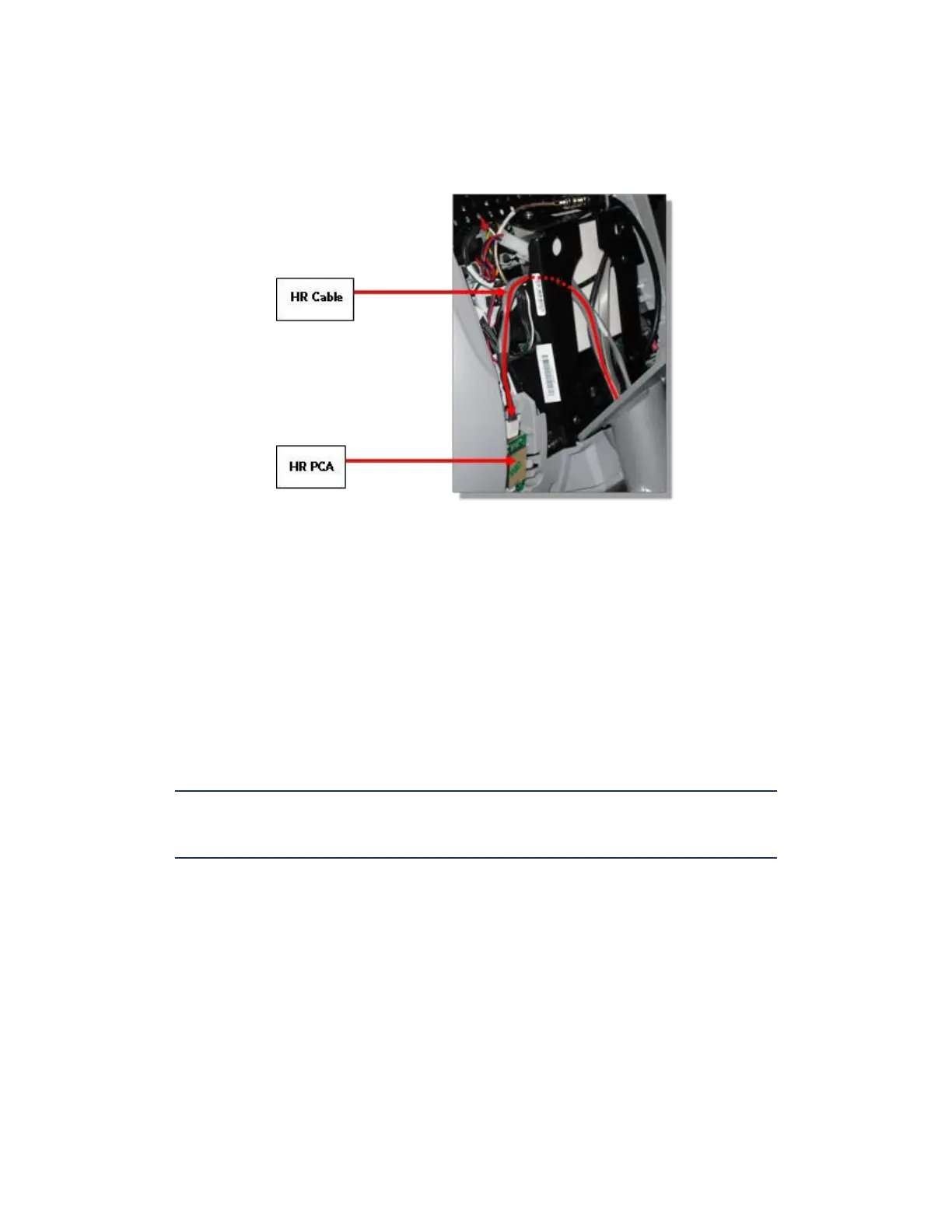

Figure 43: P80 Heart Rate Cable Routing
Console Mounting - Install
1 Make sure that all cables are fully and securely connected, and that
cables are tied back properly. Make sure any extra cabling is
pulled down through the neck and along the front of the dash, making
sure the cables are routed through the plastic guides inside the
neck.
2 Tilt the control console backward (toward yourself) until the tab on
the top edge of the armor slides along the top edge of the console
mount and the screw holes align properly.
3 Secure the console to the plate using the four flat head
5
/
8
inch long
screws.
Note: You must use
5
/
8
inch long screws. If the screws are too short the
console will not be properly grounded. If the screws are too long it is
possible to damage the internal wiring.
4 Tighten the screws fully using a ⁵/₃₂-inch hex wrench.
5 Replace the rear vent cover.
Replacing the P80 Heart Rate PCA Board
Procedure
