Rear Flat Belt Terminal Installation
17 Carefully slide on the anti rotation disc and flat belt terminal. Do
not use excessive force. Fasten the anti rotation disc and flat belt
terminal onto the stairarm using the washer and mounting bolt,
torque to 300 inch pounds (25 ft-lbs) or 25 foot pounds.

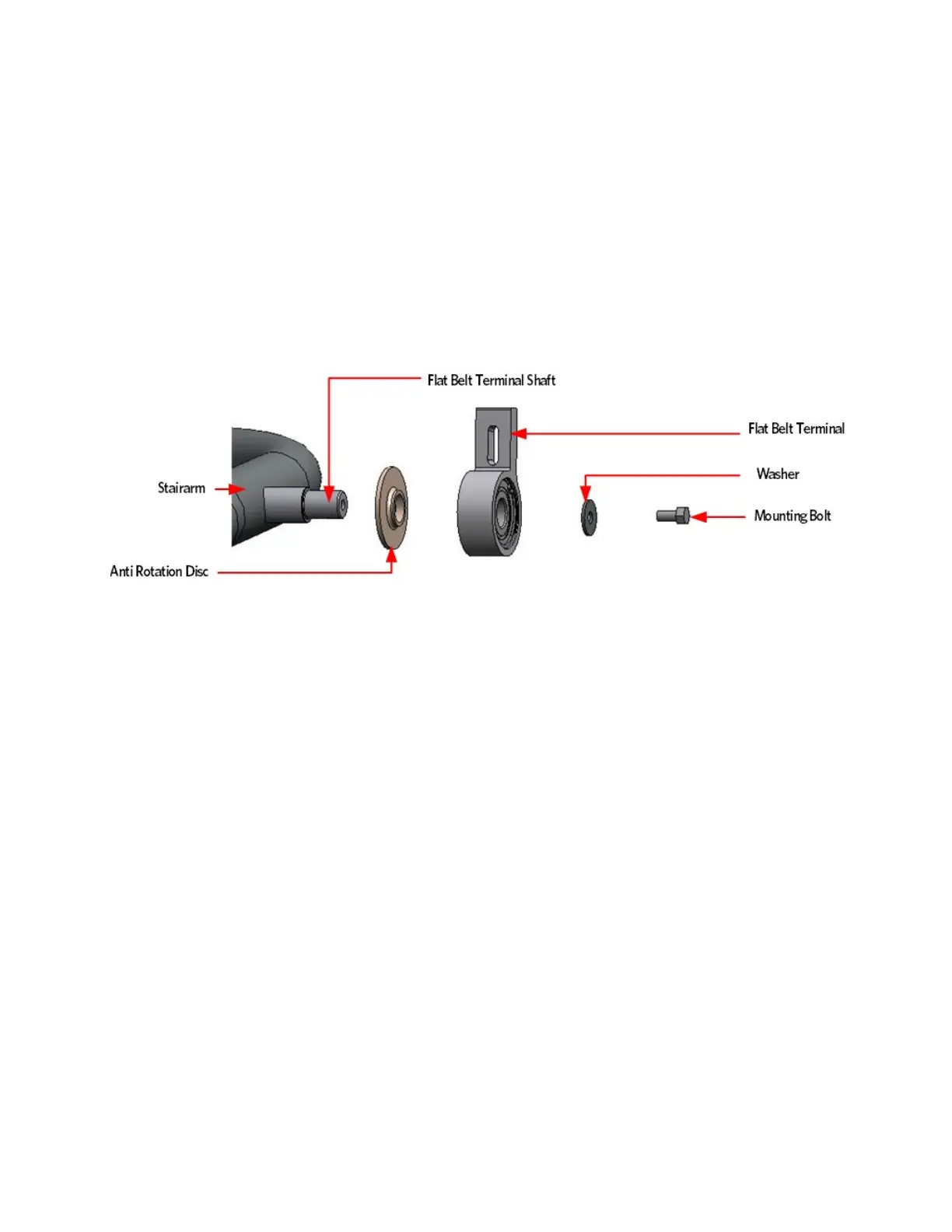

Figure 118: Flat Belt Terminal Removal
Rear Flat Belt Terminal Cover Installation
18 Align the top of the replacement inside cover so that it is pointing
toward the floor. Place the bottom of the cover in between the flat
belt terminal and the stairarm pedal. Rotate the top of the cover up
and in to place.
19 Fasten the outside and inside terminal cover to the flat belt
terminal using the two #10-24 X 1.25 screws.
