Precor AMT Series - Figure 273: Generator

© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law
Page 326
3 Loosen the two generator mounting bolts.
4 Lower the generator by loosening the generator adjustment bolts
until the top of the bracket slots are resting on the generator
mounting bolts.

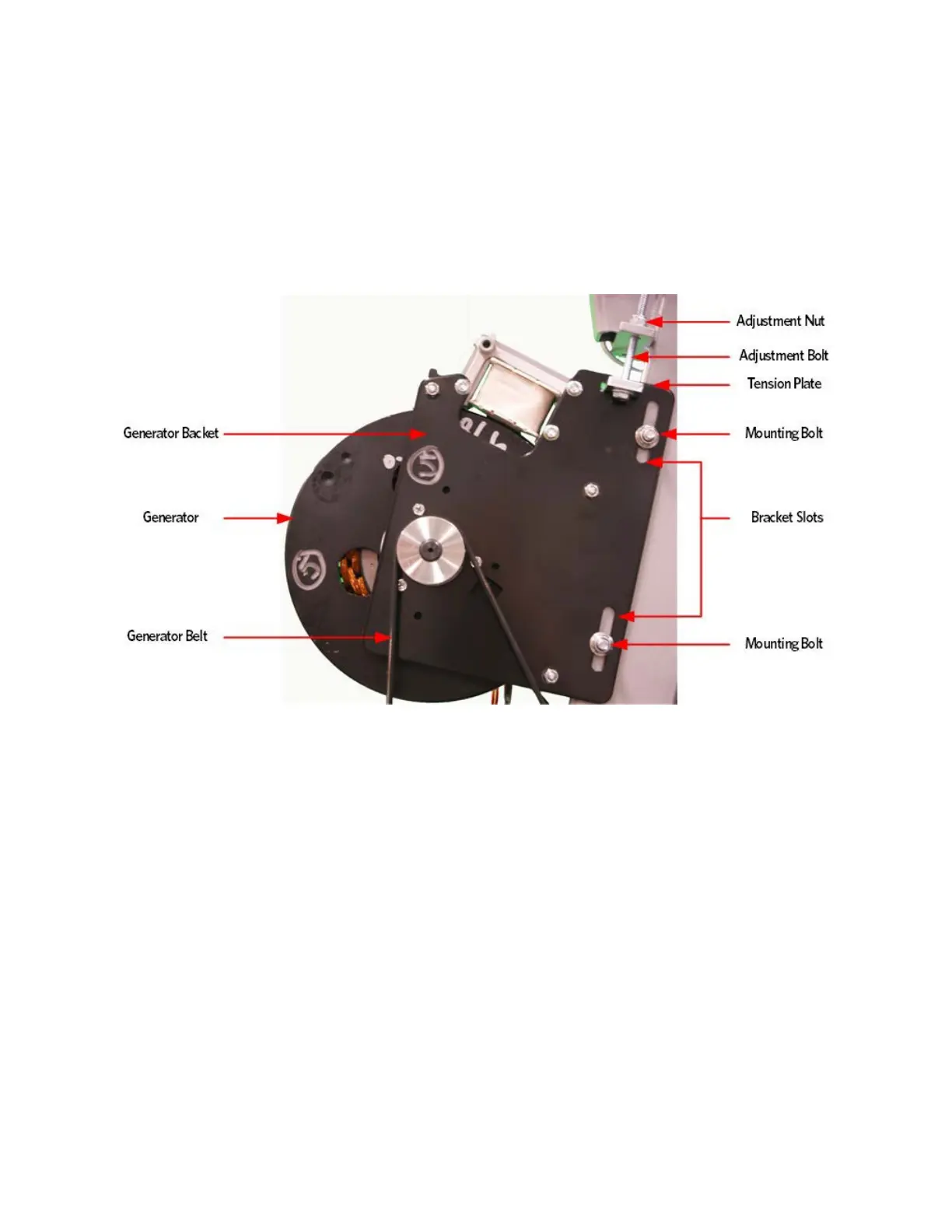

Figure 273: Generator
5 Loosen the two bolts that secure the step up pulley mounting bracket
bolts to the frame.
