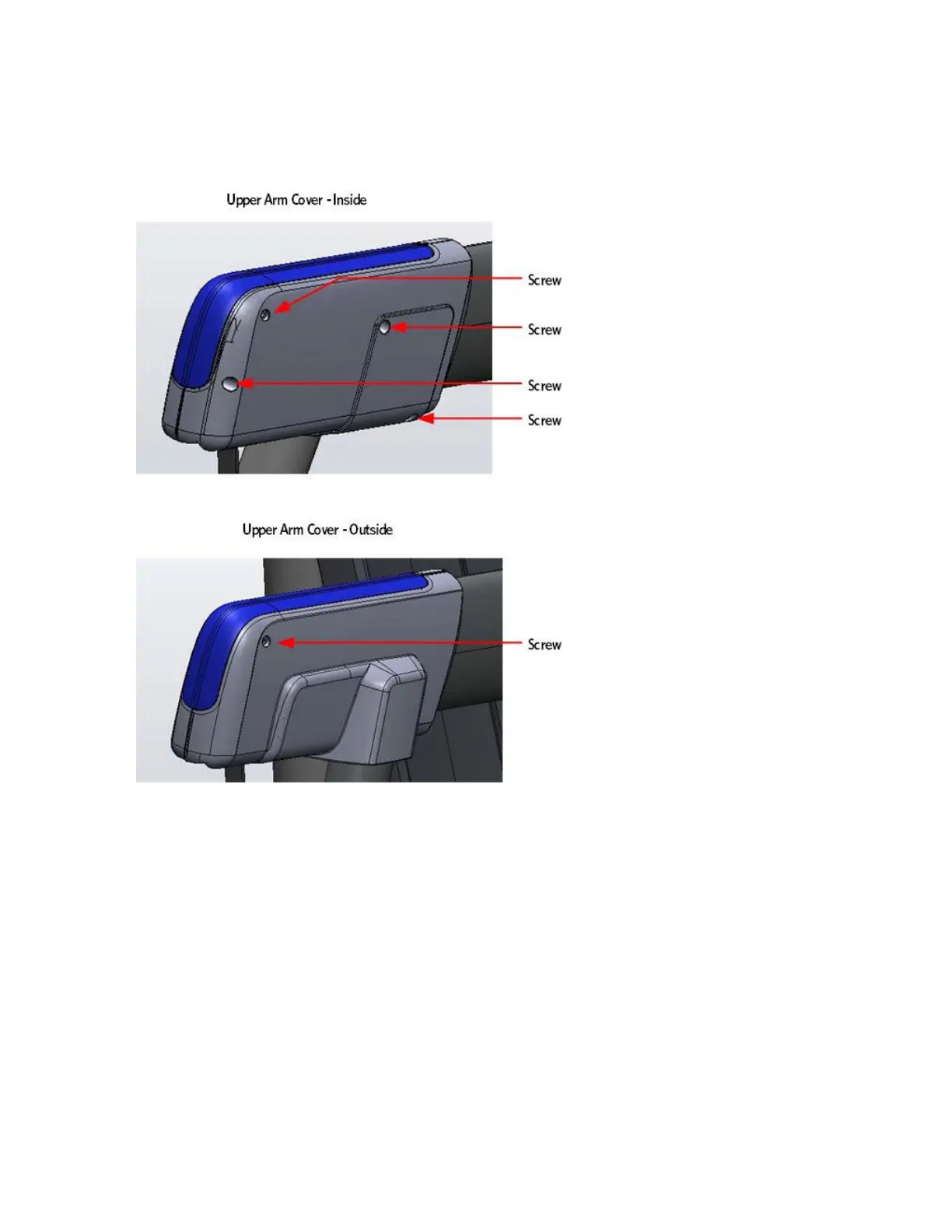

Figure 79: Upper Arm Cover Screw Locations
Rear Flat Belt Terminal Cover Replacement
1 Remove the two screws that secure the flat belt covers to the flat
belt terminal, remove the outside terminal cover.
2 Rotate the inside terminal cover down until it is below the stairarm
pedal, pull to remove.
3 Align the top of the replacement inside cover so that it is pointing
toward the floor. Place the bottom of the cover in between the flat
belt terminal and the stairarm pedal. Rotate the top of the cover up
and in to place.
4 Fasten the outside and inside terminal cover to the flat belt
terminal using the two #10-24 X 1.25 screws.
