11 Using a screwdriver, push out the pin from the flat belt loop and
clamp and then slide the flat belt out of the clamp. A 1/2 inch
socket will fit the inside diameter of the flat belt clamp and can
be used to push the flat belt out of the flat belt clamp.

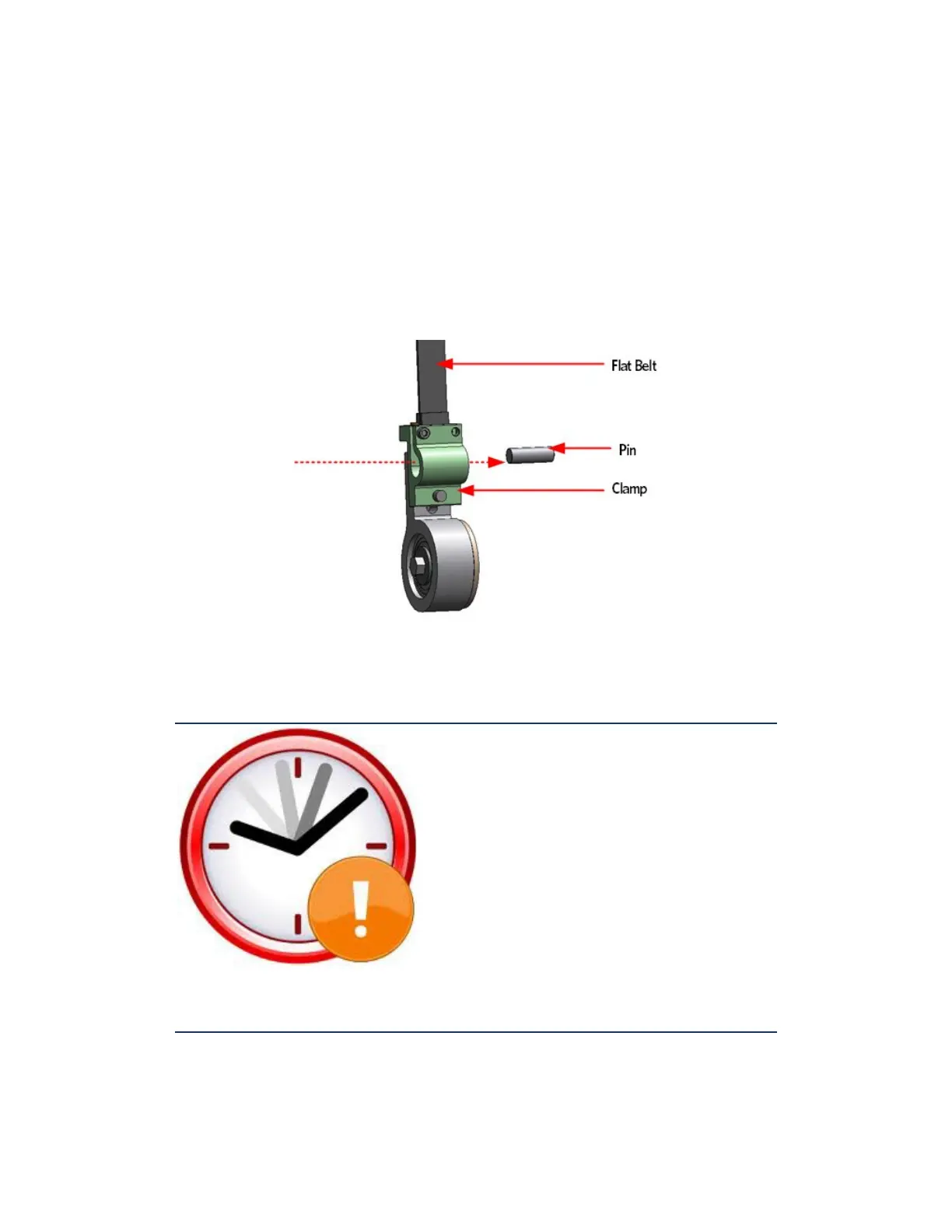

Figure 140: Flat Belt Pin Removal
Upper Arm Flat Belt Pulley Removal
Time Saver Tip: When installing the
replacement flat belt, tape the end of the replacement belt to the old flat belt at
the cam side and then pull the new belt through the upper arm as the old belt
is removed.
