14 Remove the Incline motor mounting bolt and remove the Incline motor.

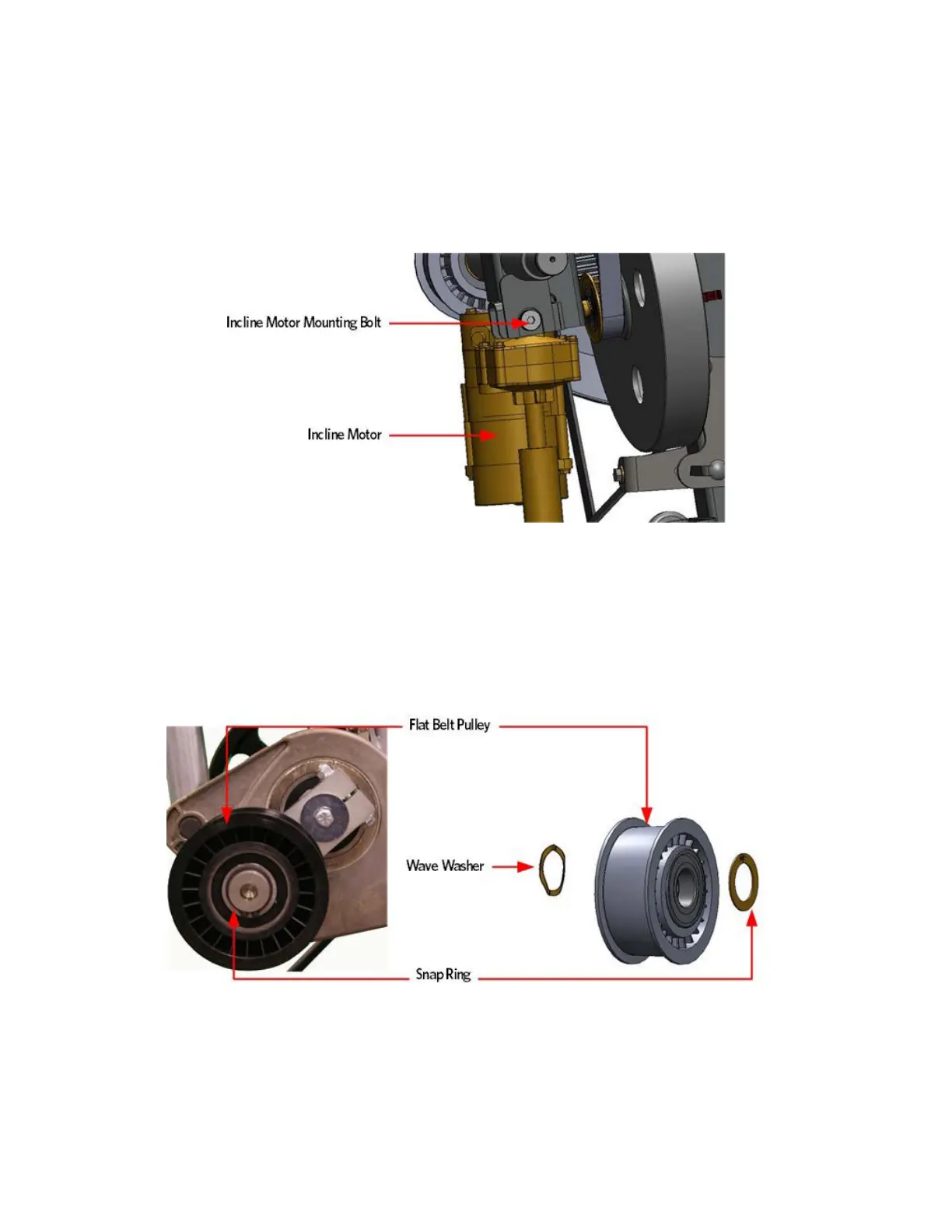

Figure 253: Incline Motor Mounting
15 On the crank arm side of the drive input, remove the snap ring from
the flat pulley shaft located on to the drive input pulley, remove
the pulley and wave washer.
Figure 254: Crank Arm Flat Belt Pulley
16 Loosen the crank arm pinch bolt, washer and lock nut.
