Page 209

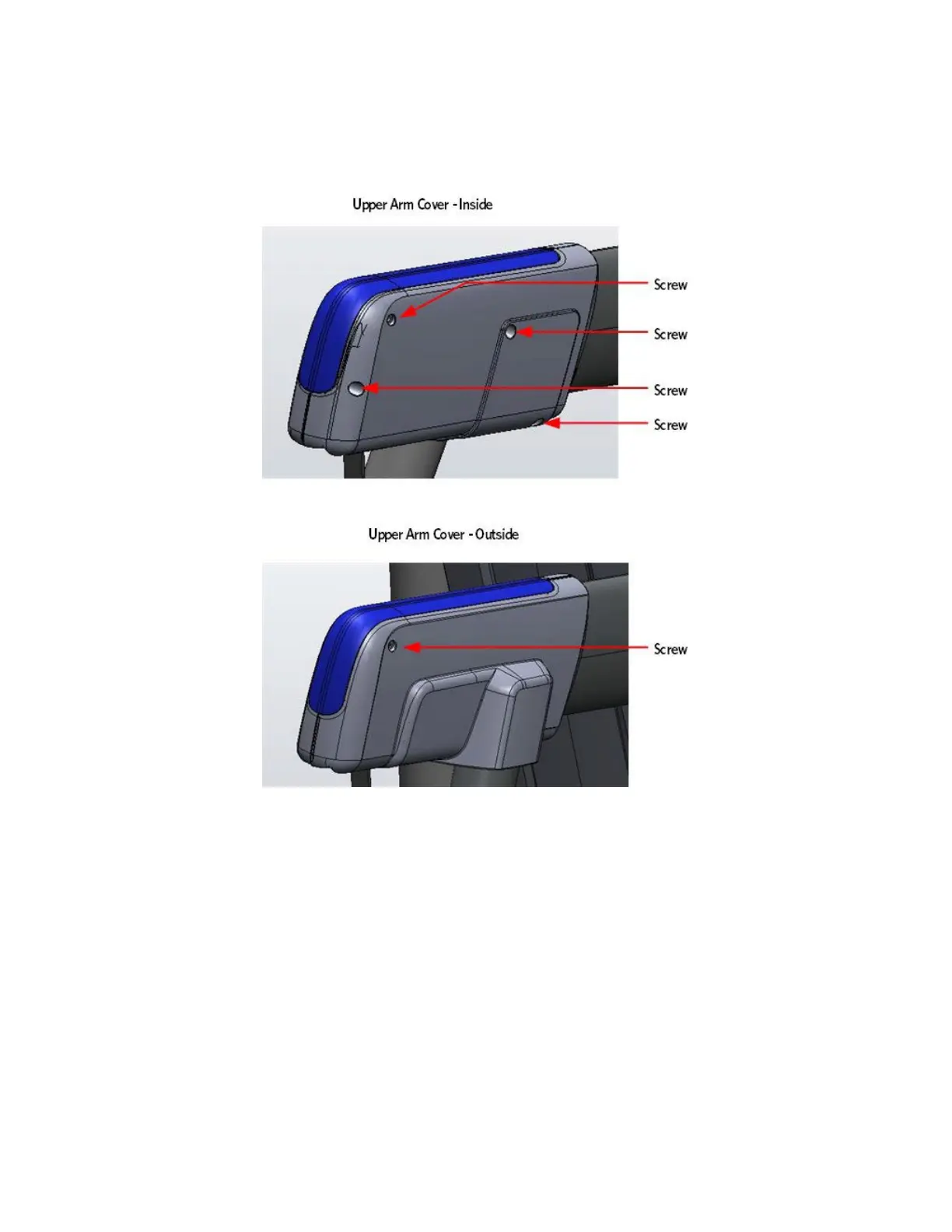

Figure 133: Upper Arm Cover Screw Locations
Belt Guard Removal
1 Grasp the belt guard mounting ring's located on each side of the
upper arm. Gently pull out and away from the grip connection ring's
just enough to extend past the mounting bolt.
