18 Replace the wave washer and flat belt pulley onto the drive input
pulley shaft and secure with the snap ring. Make sure the snap ring
is fully seated into the shaft groove.
19 Place a belt gauge on the drive input belt as shown below.

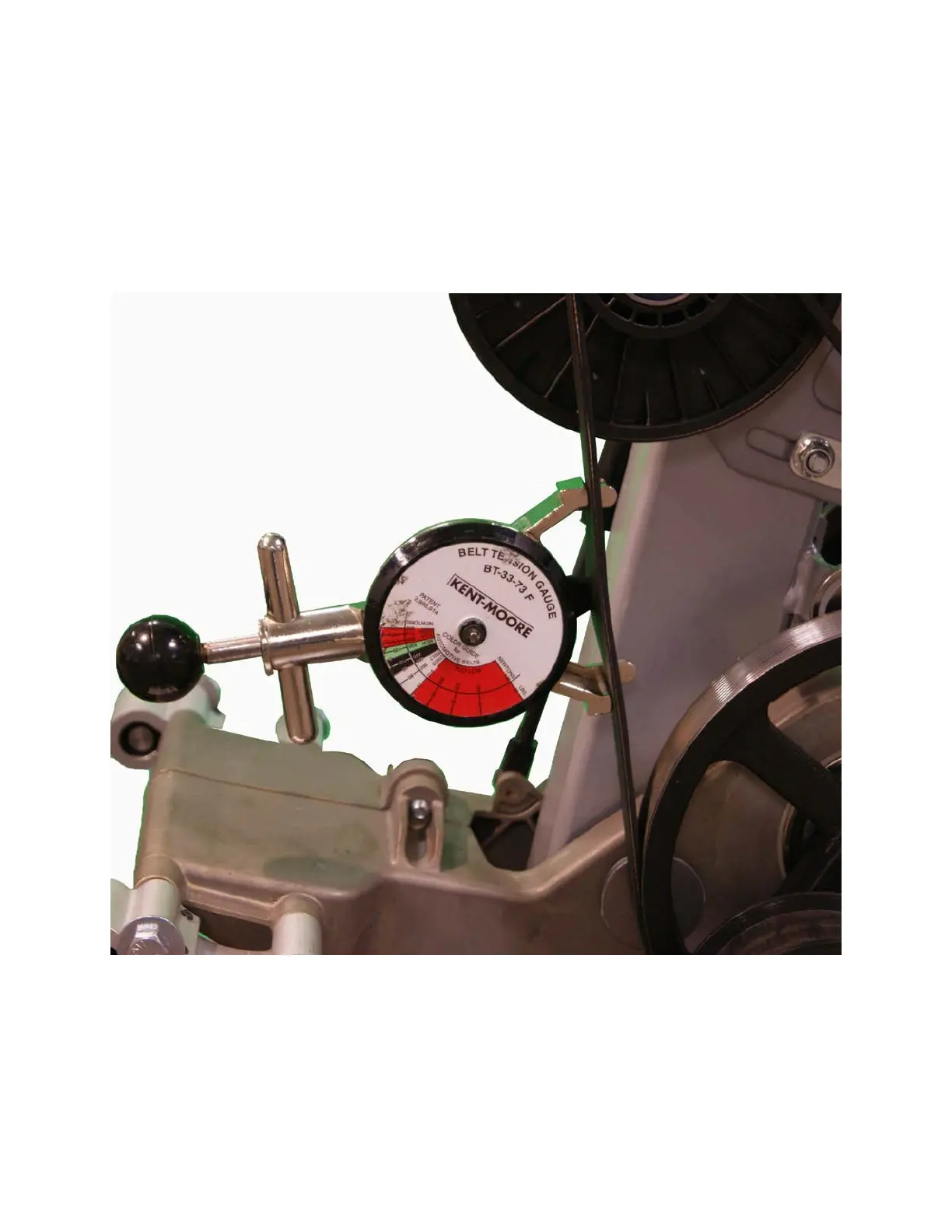

Figure 245: Dive Input Belt
20 The belt gauge should read approximately 135 ±5 lbs. If the belt
tension is significantly high or low the belt tension may be
adjusted by following the steps below. See Drive Belt Gauge Instructions
(on page 142)
21 Loosen or tighten the step up pulley adjustment bolt until the belt
gauge reads approximately 140 lbs. See Drive Belt Gauge Instructions (on
page 142)
