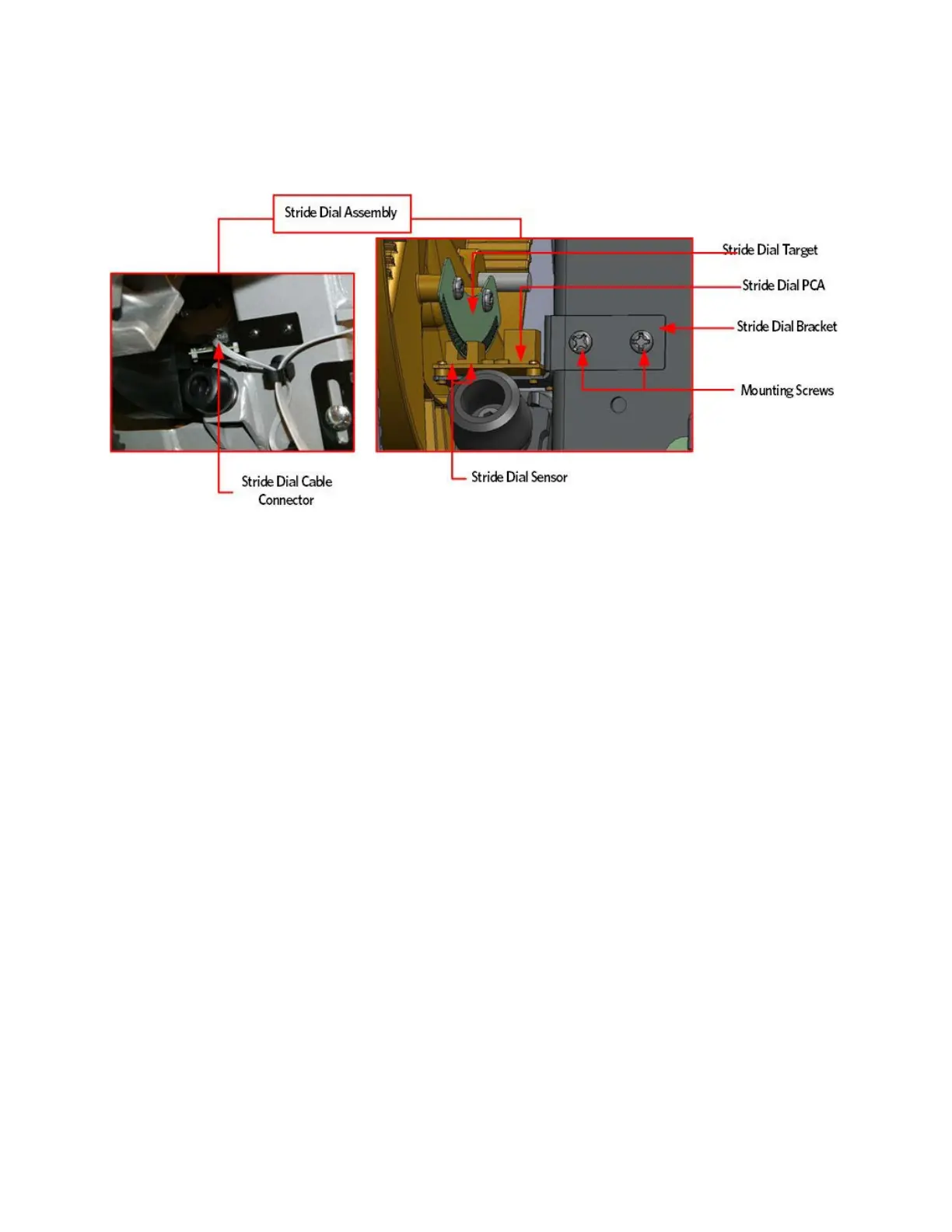

Figure 301: Stride Dial Assembly
Stride Dial Assembly Installation
4 Secure the stride dial assembly to the frame with the two screws,
do not fully tighten the screws.
5 Adjust the stride dial bracket unit the stride dial target is
centered between the two stride sensors on the stride dial PCA.
6 Fully tight in the two screws that secure the stride dial sensor to
the frame.
7 Reconnect the stride dial cable connector to the stride dial sensor,
ensure the cable is routed and secured away from the H-Brake cam
stops.
