Disconnection Cables
1 Locate the coax connector and cut the wire tie that secures the coax
connector to the console armor. Disconnect the coax cable connector
from the consoles flexible coax cable connector.

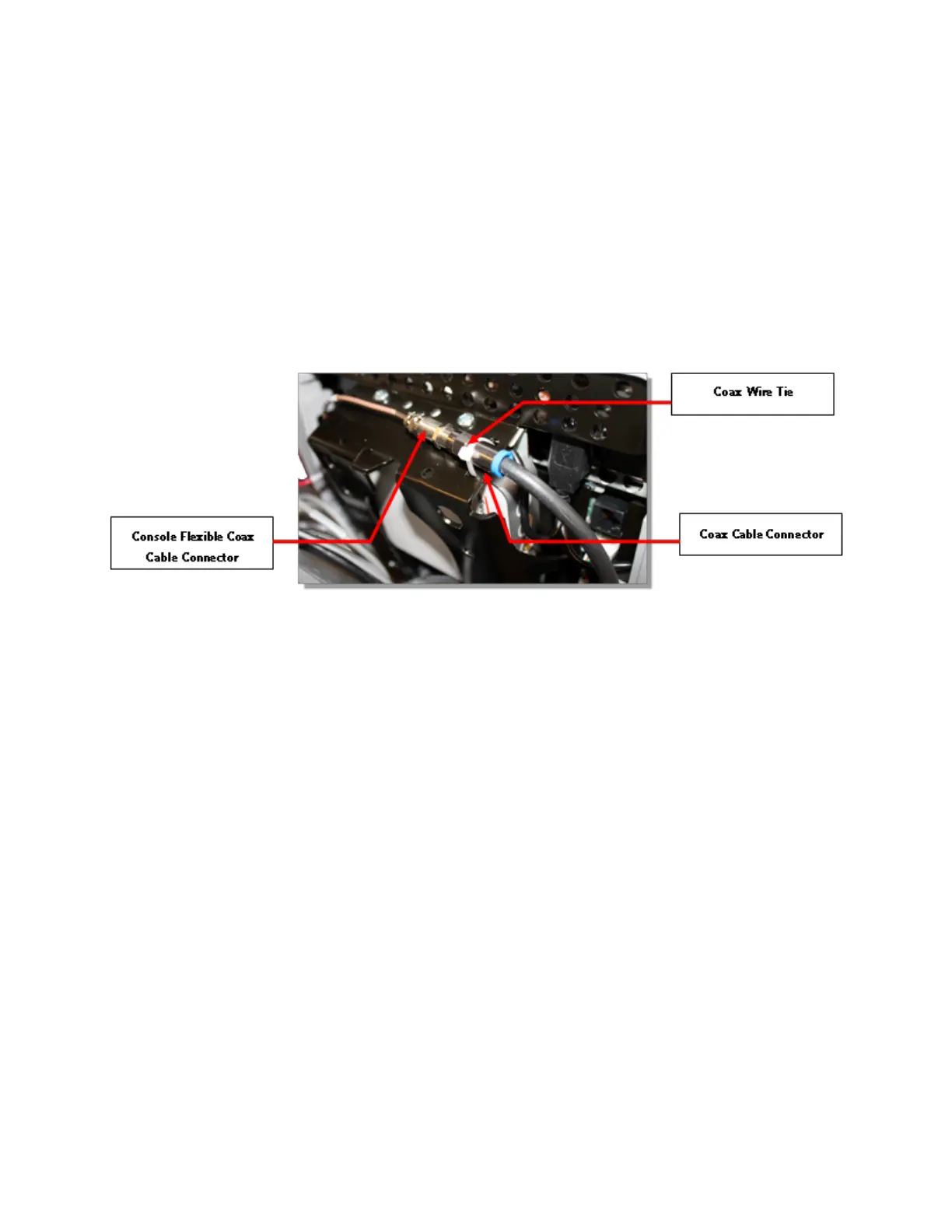

Figure 38: Coax Cable
2 Disconnect the Ethernet cable, Data cable, the Power cable and the
HR cable.
