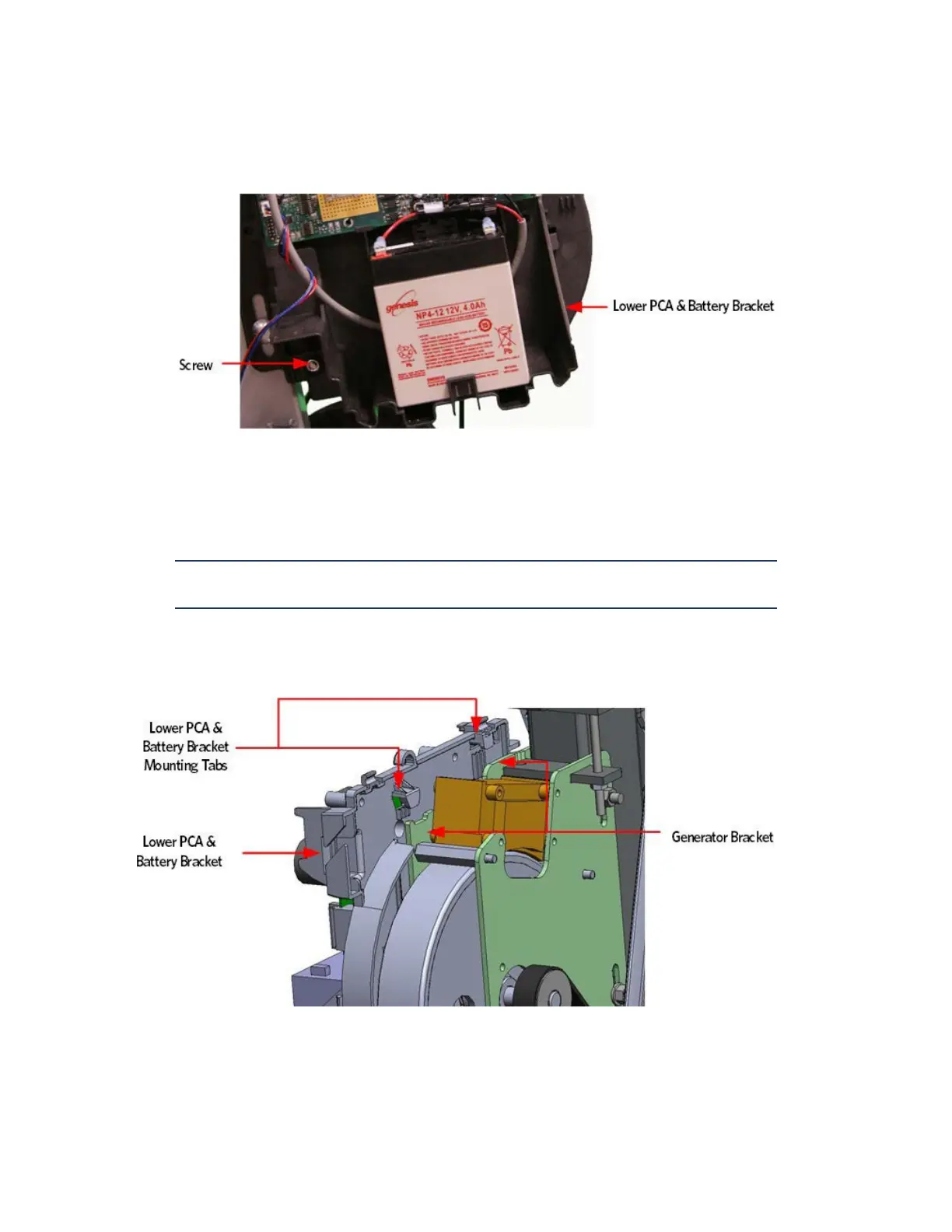

Figure 209: Lower PCA and Battery Bracket
7 Lift the bracket up and off the generator bracket.
Battery Bracket Installation
8 Align the Lower PCA mounting tabs with the generator bracket, then
slide the bracket down onto the generator bracket.
Note: Ensure that the wires are not pinched between the generator bracket
and the lower PCA battery bracket.
Figure 210: Lower PCA & Battery Bracket Mounting
9 Fasten the #10-24X.75 screw that secures the bracket to the frame
that was removed in step 5.
10 Replace the lower PCA as per procedure, Removing the Lower PCA Cover
(on page 268).
